Stainless Steel DC Boat Hoist Motor + Solar Charging Kit

Wireless Boat Lift Motor and Solar Charging Kit DC 20w 24v

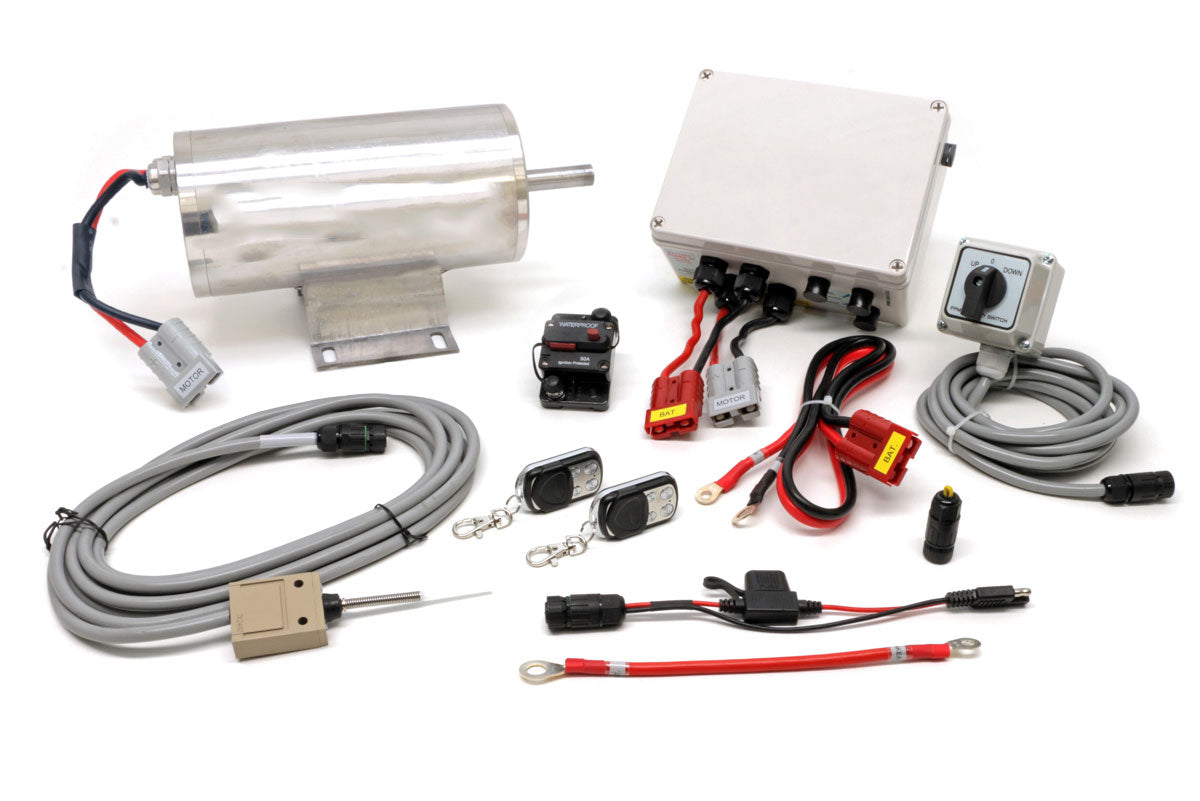

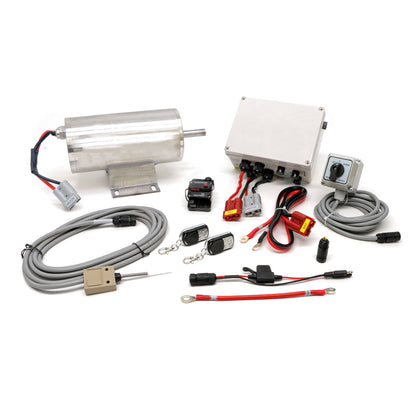

The Lake Lifter Wireless Boat Lift Motor and Solar Charging Kit provides a comprehensive all in one solution for converting traditional flat plate boat hoists to a safe and high performance DC power system. This kit centers on a powerful one point five horsepower marine grade motor available in stainless steel or epoxy coated finishes. Engineered to handle vessel weights exceeding eight thousand five hundred pounds this motor delivers faster lifting speeds than traditional AC powered alternatives. The unit features a universal motor mount designed to fit all flat plate style open gear hoists and utilizes a standard five eighths inch shaft compatible with existing single and double pulley belt configurations.

The system is managed by a heavy duty marine grade wireless control box which serves as the central hub for motor operation and accessory connectivity. Users can operate the lift from a distance of up to two hundred feet using the included four channel wireless key fobs. These water resistant remotes feature a sliding cover to prevent accidental activation and include a dedicated lock button for enhanced security. For traditional dockside operation the kit also includes a manual wall switch that can be mounted to any vertical post. Additional safety is provided by an optional waterproof limit switch which prevents accidental over height lifting by automatically breaking the motor connection at a predetermined height limit.

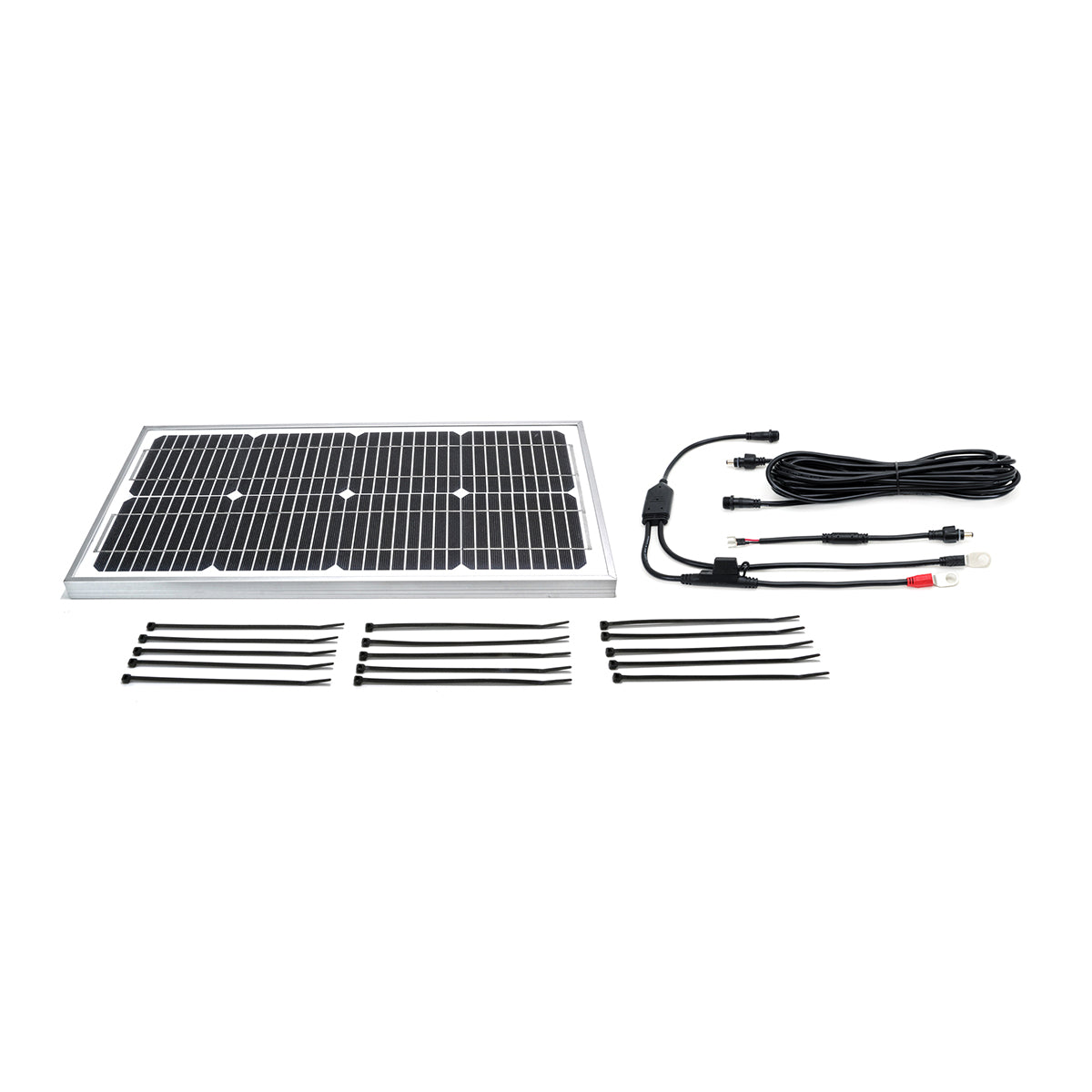

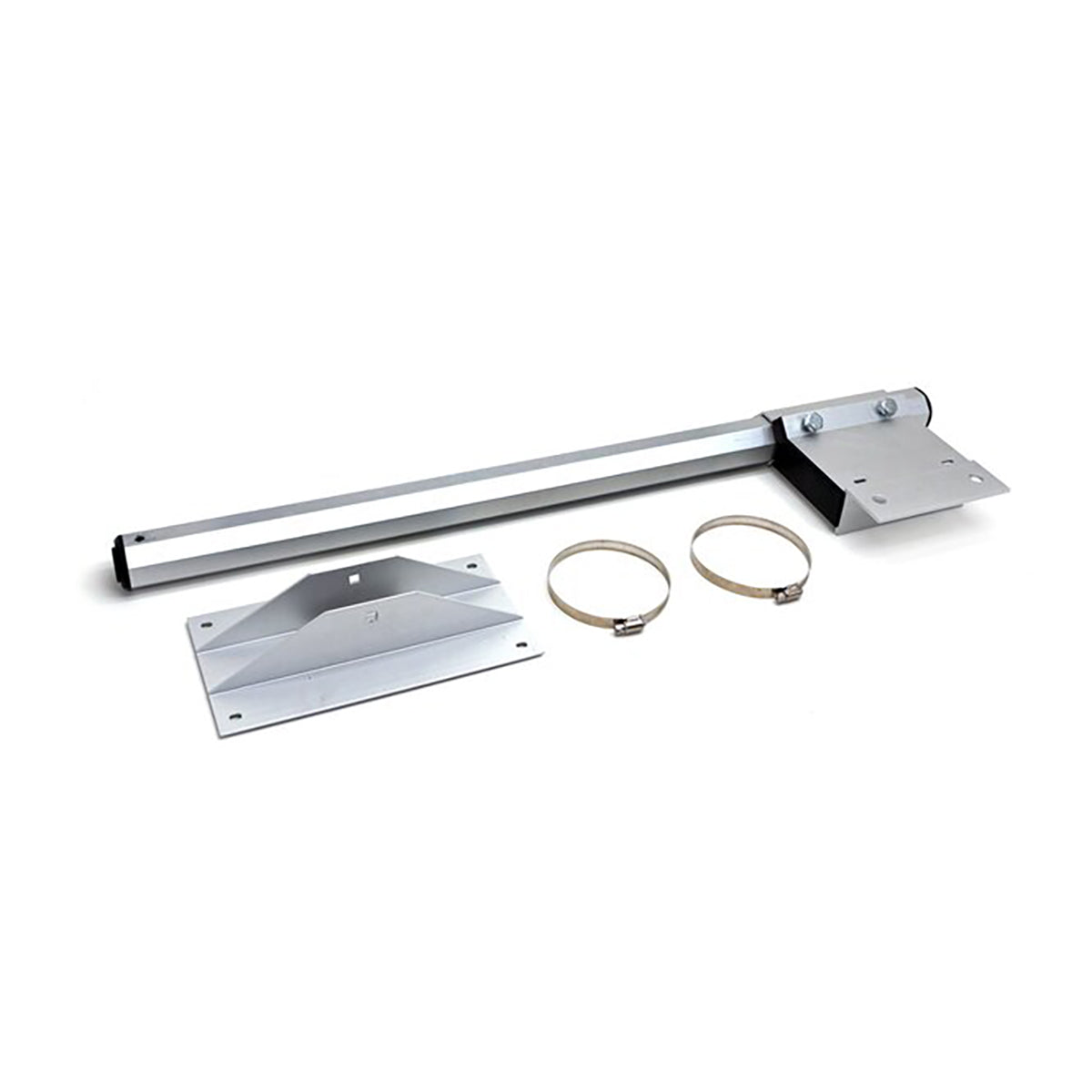

Power is supplied by a twenty four volt DC configuration utilizing two twelve volt deep cycle batteries connected in series. To ensure the system remains fully charged and ready for use the kit includes a twenty watt twenty four volt solar charging system. This advanced charging kit utilizes high efficiency monocrystalline solar cells known for their superior performance in low light conditions and a service life rating exceeding twenty years. The solar module is protected by low iron tempered glass and housed in an anodized aluminum frame which is mounted via a corrosion resistant adjustable arm capable of withstanding high winds and severe weather.

This integrated package includes a five ampere solar charge regulator with LED status indicators twenty five feet of heavy duty wiring and a waterproof connection system for simplified installation. A resettable breaker fuse is included to protect the electrical circuit from overloads eliminating the need for manual fuse replacements and providing a convenient point for power disconnection. This system represents a significant upgrade in both safety and reliability by removing high voltage electrical hazards from the water and providing a robust self sustaining power source for modern boat lift operations.
