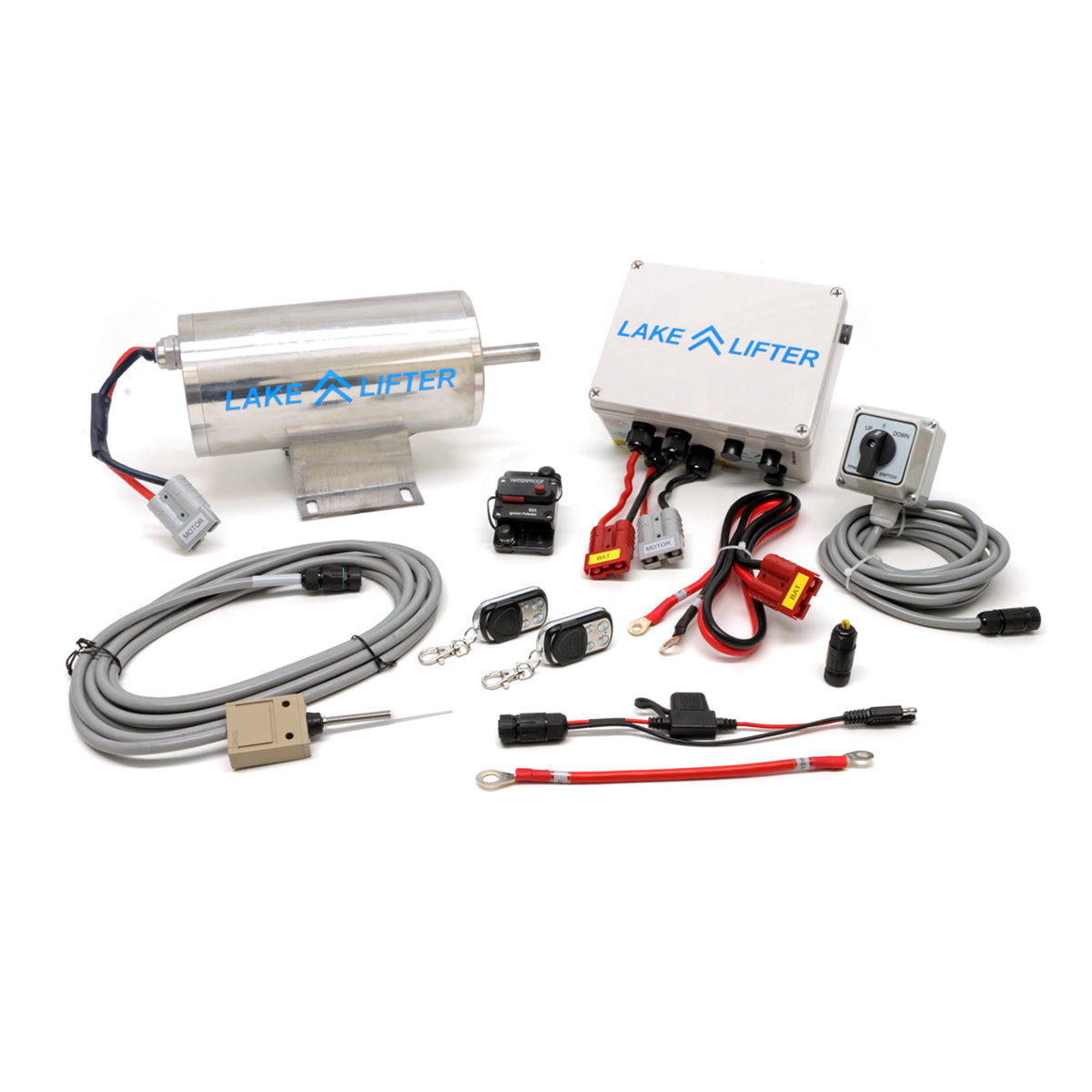

Stainless Steel Boat Hoist Motor Kit - DC 24v

A professional DC 24V conversion kit for flat plate boat hoists. A 1.5HP stainless steel marine-grade motor rated up to 8,500 lbs, 200-foot wireless 4-channel key fob control, waterproof limit switch, resettable breaker fuse, and safe low-voltage 24V operation from two 12V deep cycle batteries in series. Faster lifting speeds than AC alternatives.

1.5HP Stainless Steel DC Motor

The 1.5HP marine-grade stainless steel motor handles single motor boat lifts with gear plates rated up to 8,500 lbs, delivering significantly faster lifting speeds than traditional AC-powered alternatives. The universal motor mount and standard 5/8 inch shaft ensure compatibility with existing gear plates and standard pulley belt hardware for a straightforward installation process.

Wireless Control Suite

The heavy-duty marine-grade wireless control box provides operation up to 200 feet away via the included water-resistant 4-channel key fobs. Each fob features a sliding cover to prevent accidental activation, dedicated up and down buttons, a lock function, and remote control for optional 12V LED boathouse lighting connected to the master control box. A traditional wall switch is also included for manual dockside operation and can be mounted to any vertical post.

Safety & Circuit Protection

The included waterproof limit switch prevents accidental over-height lifting by automatically breaking the upward motor connection when triggered, while allowing continued downward operation until the system is reset. The entire kit operates on a safe 24V DC circuit powered by two 12V deep cycle batteries in series, eliminating high-voltage shock hazards near the water. A resettable breaker fuse protects the motor from overloads and provides a convenient power disconnect point without requiring manual fuse replacement.
