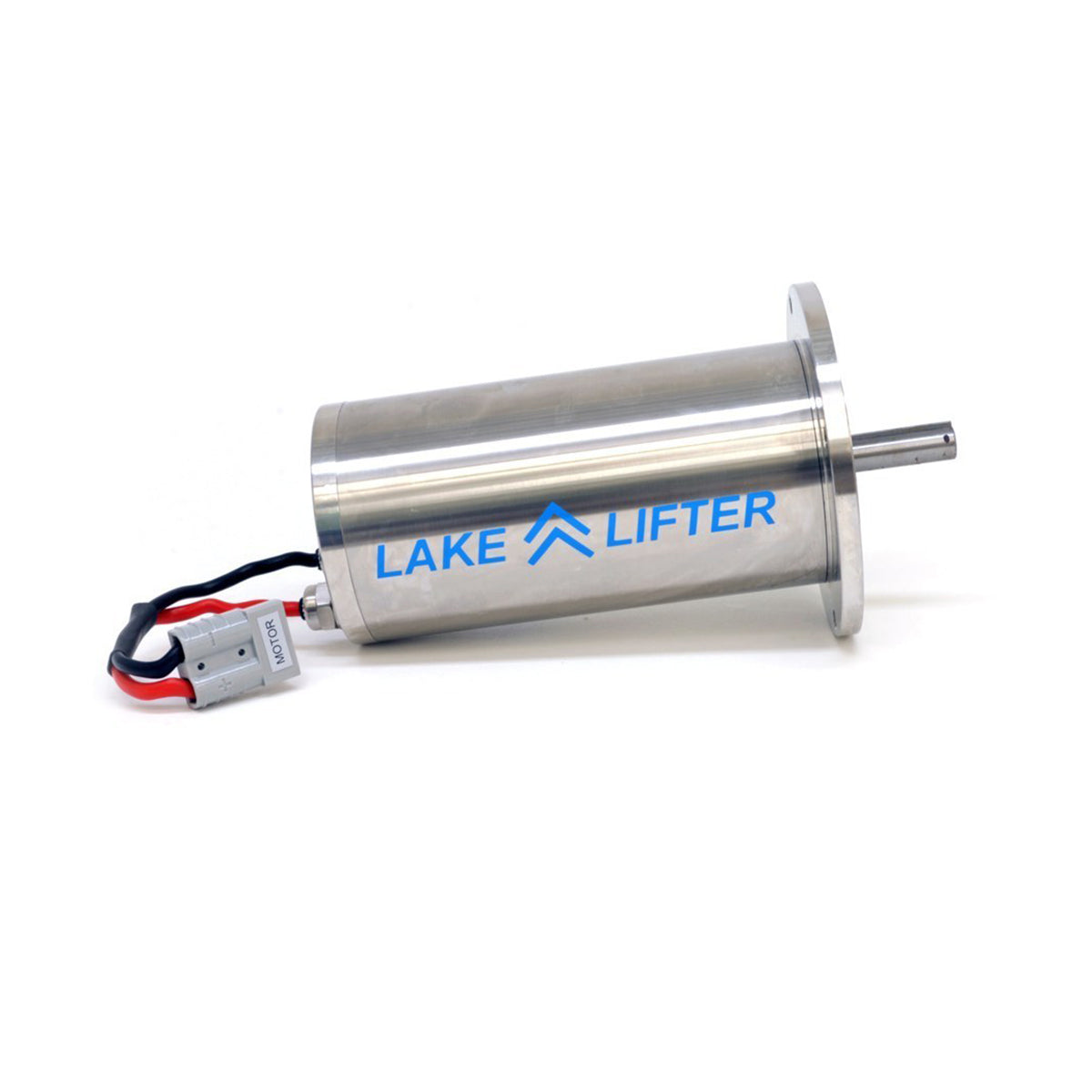

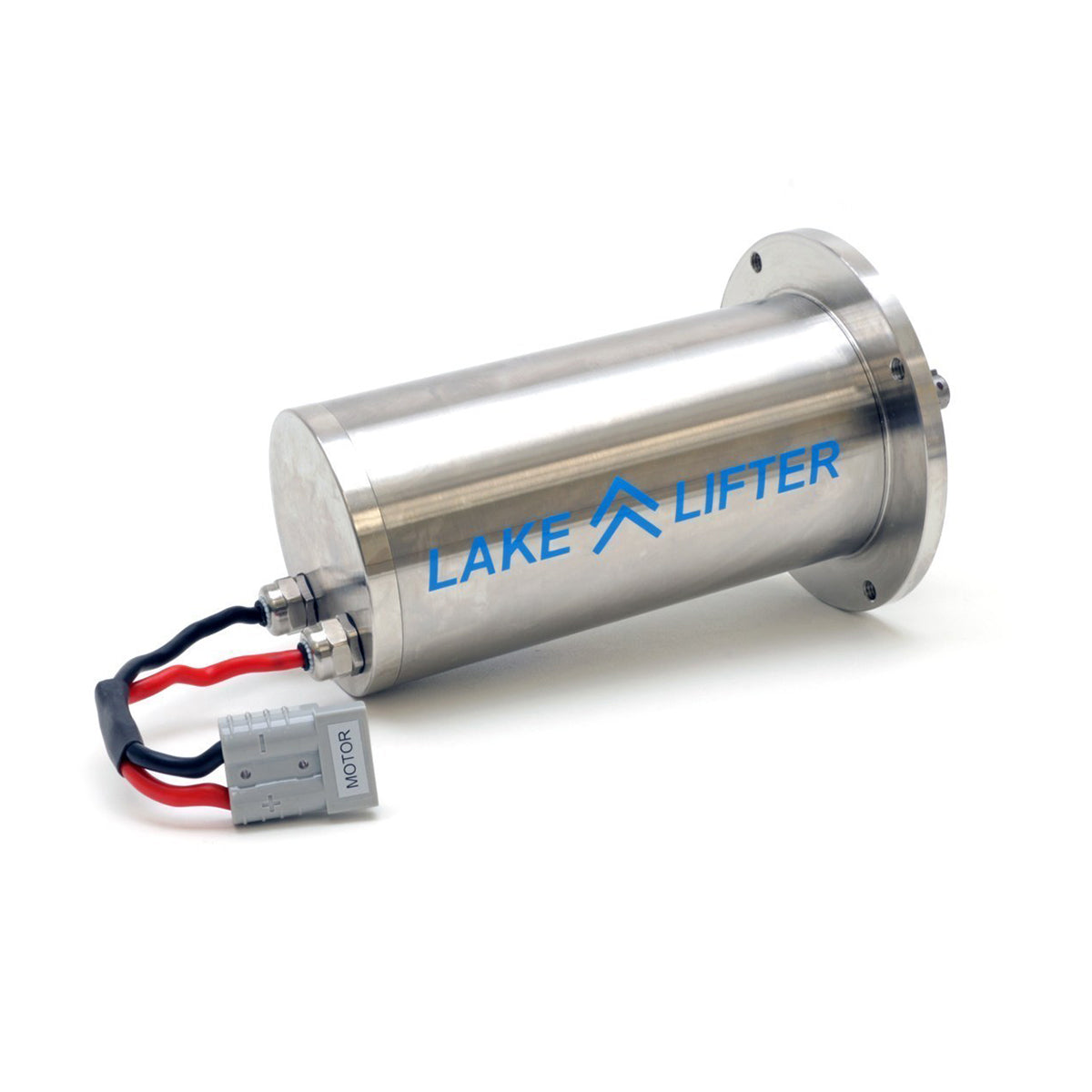

Boat Hoist Motor DC 24v - Stainless Steel

A 1.5HP stainless steel marine-grade 24V DC C Face motor for A Drive, E-Gear, and Direct Drive boat hoists rated up to 8,500 lbs. Sealed stainless steel construction for maximum corrosion resistance in fresh and saltwater, universal mount with 5/8" shaft for standard pulley configurations, faster lifting than AC alternatives, and backed by a 2-year warranty.

1.5HP Stainless Steel C Face Marine-Grade DC Motor

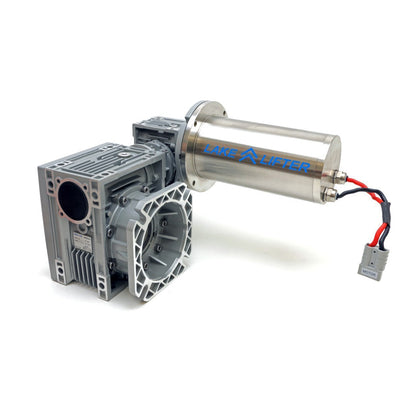

The 1.5HP sealed stainless steel C Face motor is specifically engineered for longevity in harsh environments, handling all single motor A Drive, E-Gear, and Direct Drive boat hoists with gear plates rated up to 8,500 lbs. The stainless steel construction provides maximum corrosion resistance for year-after-year reliability in both fresh and saltwater. Faster lifting times than traditional AC alternatives and elimination of dockside electrical shock hazards make this a premium upgrade for any hoist system. The universal motor mount fits all flat plate style open gear hoists and the standard 5/8 inch shaft is compatible with all standard single and double pulley belt sizes.

24V DC Power & System Integration

Safe 24V DC operation is achieved using two 12V deep cycle marine batteries connected in series. A resettable breaker fuse should be integrated to protect the motor from overloads or mechanical failures. The motor is designed to integrate seamlessly with heavy-duty manual wall switches and lockable fiberglass battery boxes for a clean, organized installation on any vertical post or wall. Control switches, batteries, and battery enclosures are sold separately.
