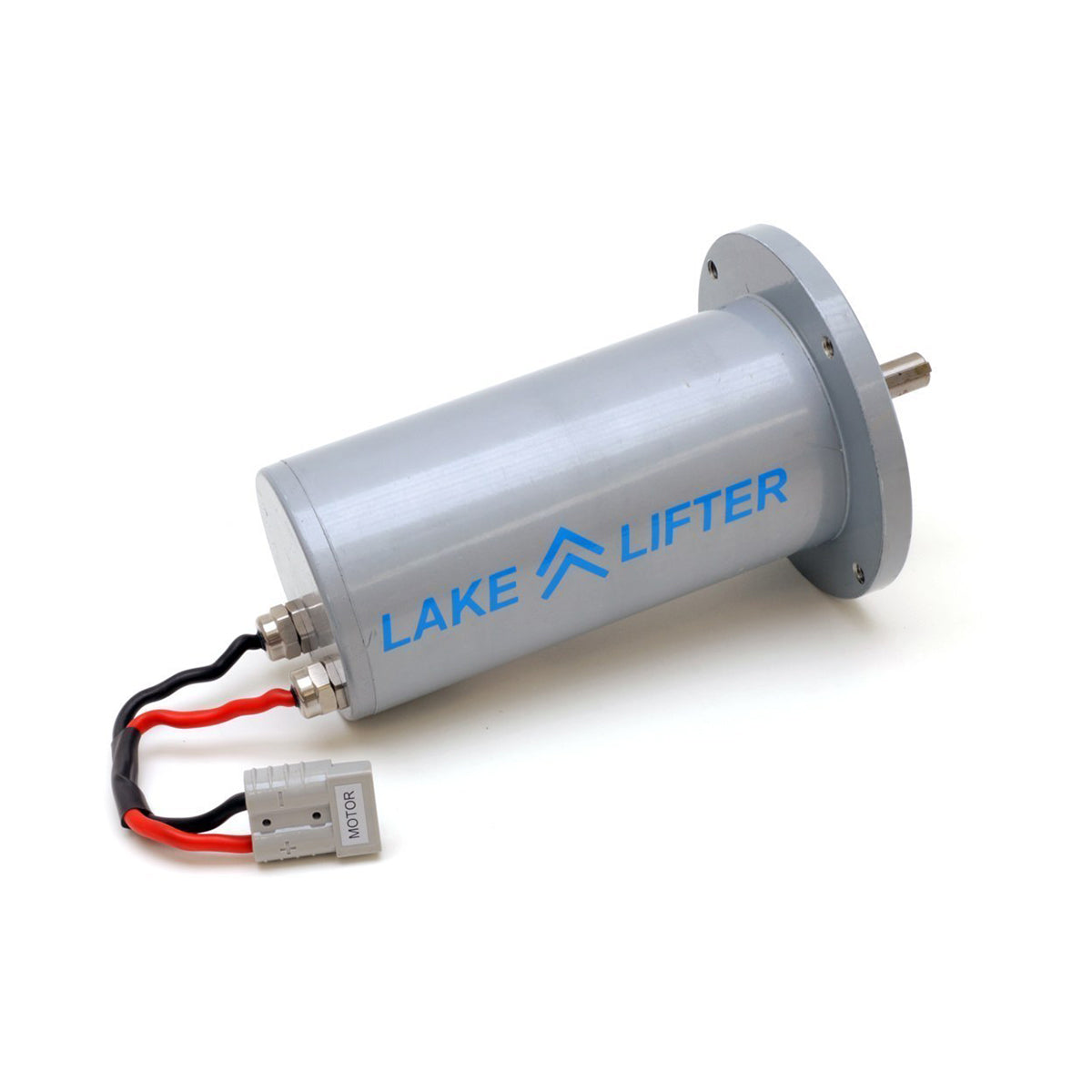

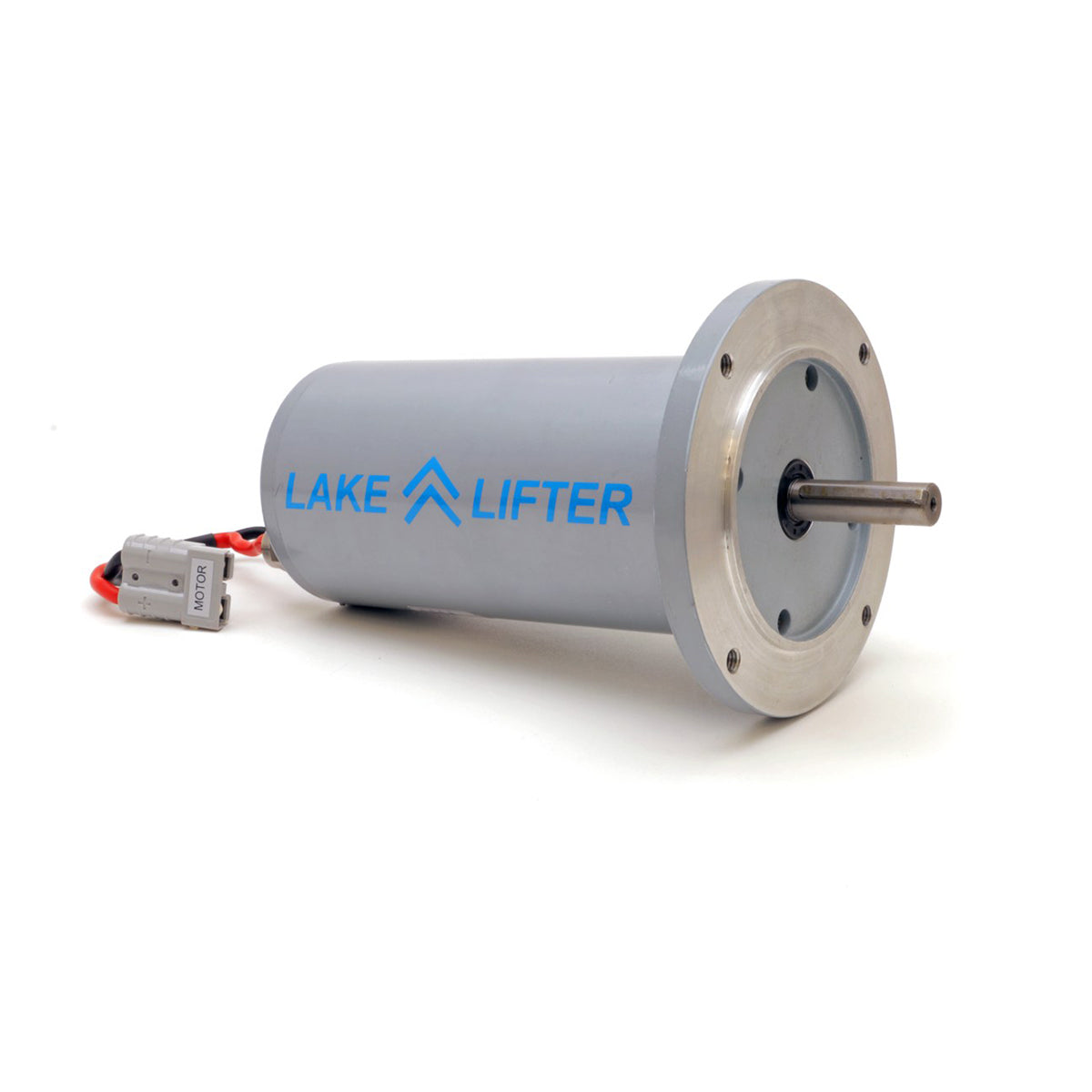

Boat Hoist Motor DC 24v 1.5hp

A 1.5HP marine-grade 24V DC C Face motor for A Drive, E-Gear, and Direct Drive boat hoists rated up to 8,500 lbs. Universal mount with 5/8" shaft compatible with single and double pulley belts, faster lifting than AC alternatives, sealed marine-grade housing for multi-season reliability, and backed by a 2-year warranty. Fresh and saltwater rated.

1.5HP C Face Marine-Grade DC Motor

The 1.5HP sealed marine-grade C Face motor handles all single motor A Drive, E-Gear, and Direct Drive boat hoists with gear configurations rated up to 8,500 lbs, delivering significantly faster lifting times than traditional AC systems while eliminating electrical shock hazards in marine environments. The universal mount integrates with standard gear systems and the 5/8 inch shaft is fully compatible with all standard single and double pulley belt configurations. Rated for both fresh and saltwater applications for reliable multi-season performance.

24V DC Power & System Integration

Safe 24V DC operation is achieved using two 12V deep cycle marine batteries connected in series. A resettable breaker fuse should be integrated to protect the motor from overloads or mechanical failures. The motor is designed to integrate seamlessly with heavy-duty manual wall switches and lockable fiberglass battery dock boxes for a clean, organized installation on any vertical post or wall. Control switches, batteries, and battery enclosures are sold separately.
