2 DC Hoist Motor Split System (Epoxy Motor) + Solar Charging Kit

Dual DC Boat Hoist Split Epoxy Motor and Solar Charging Kit

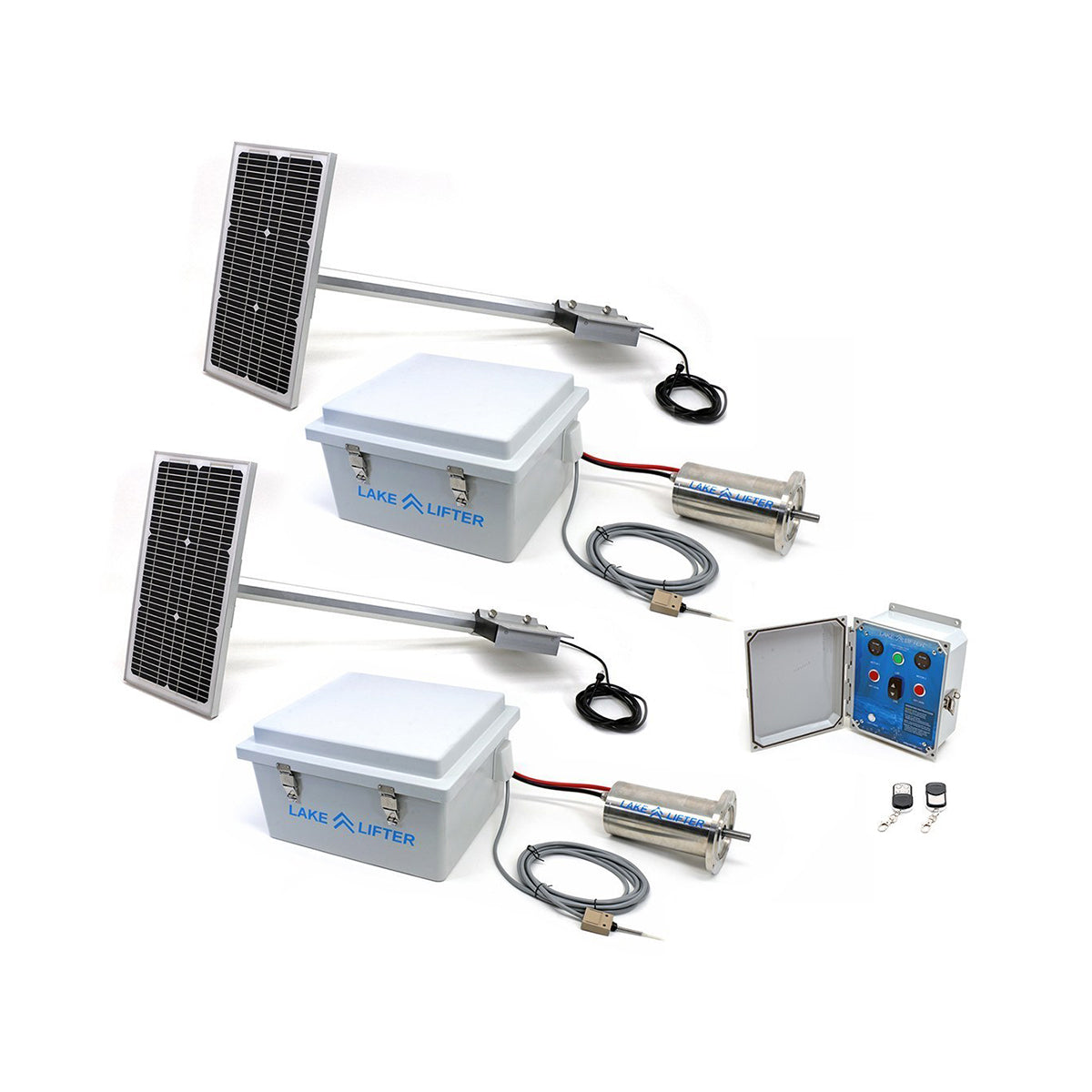

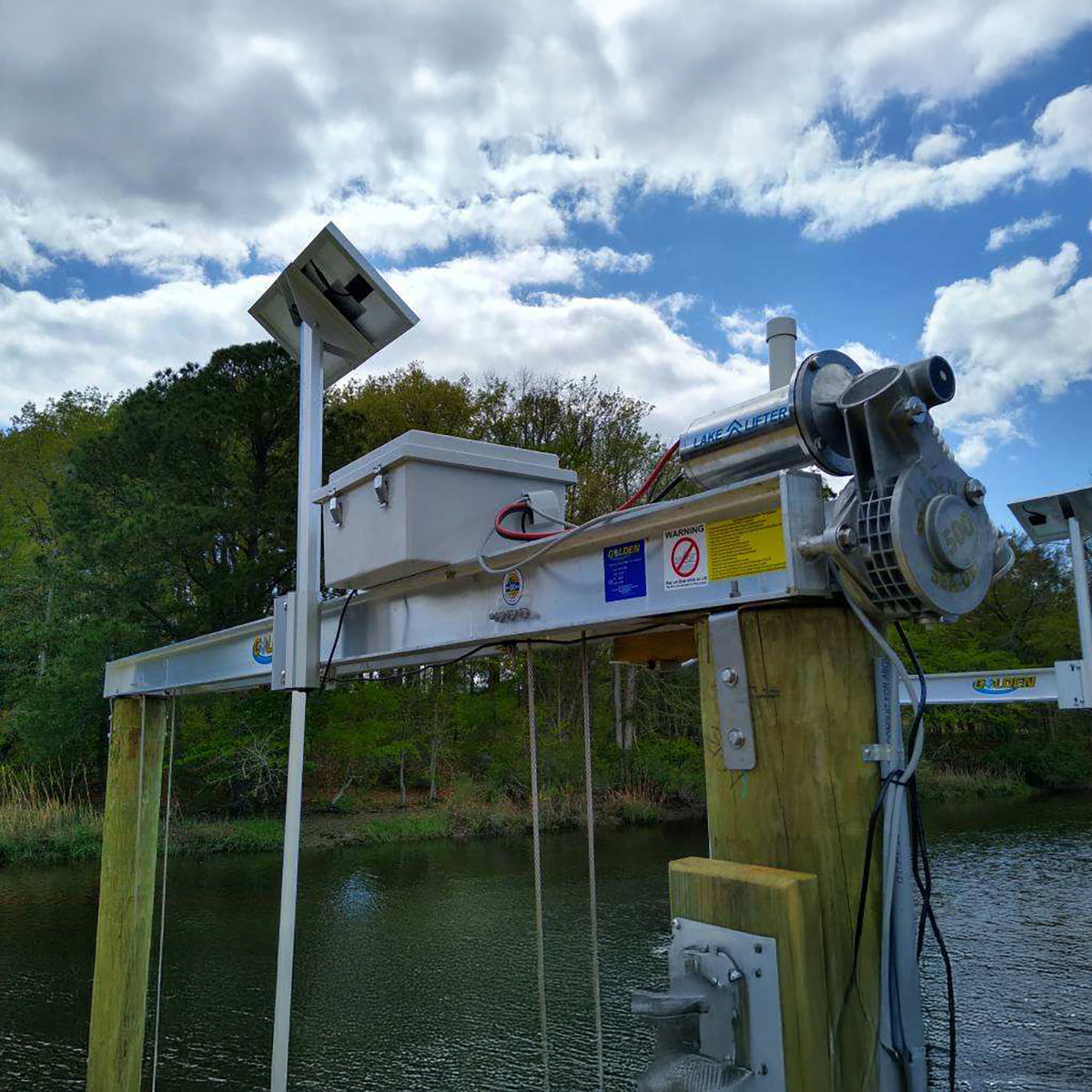

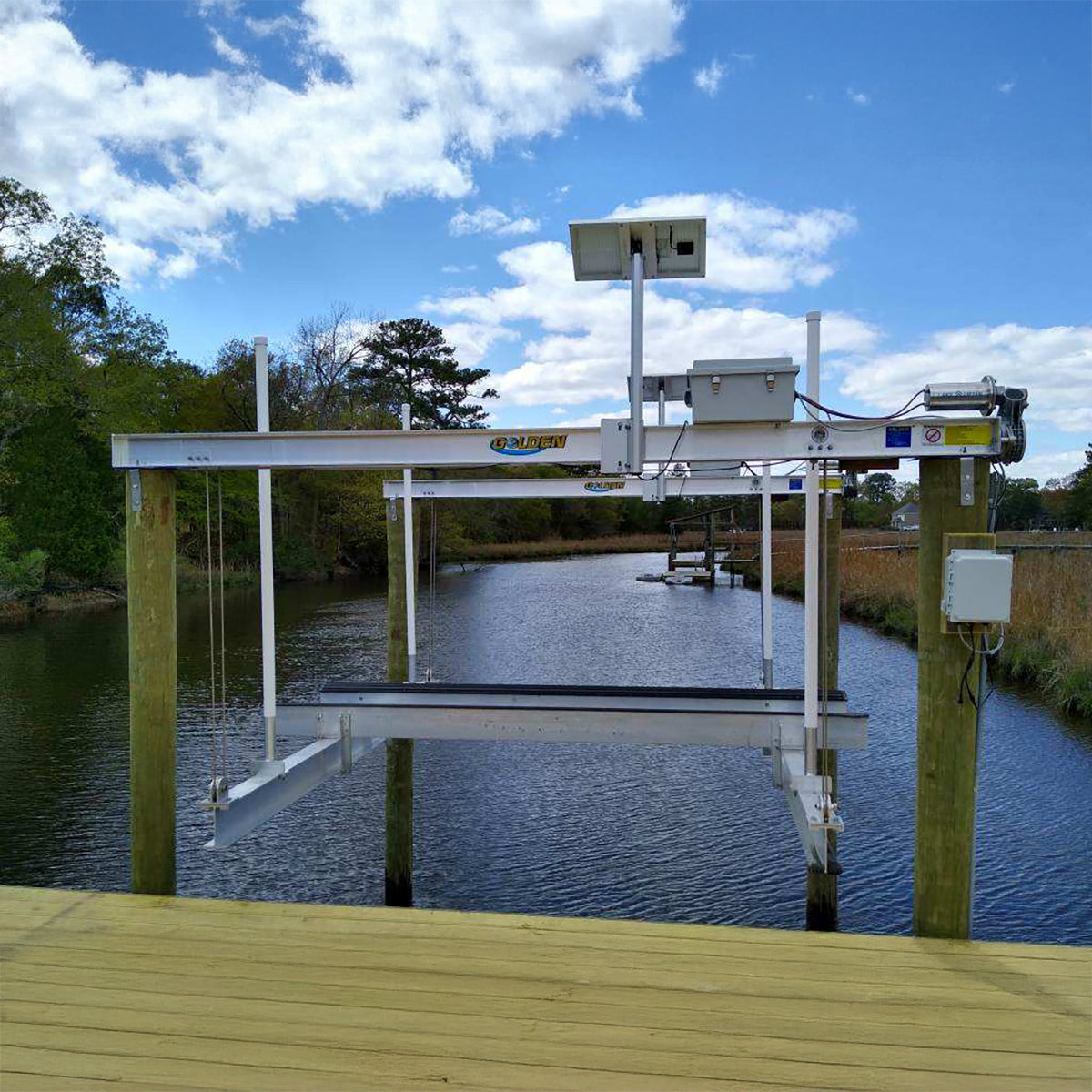

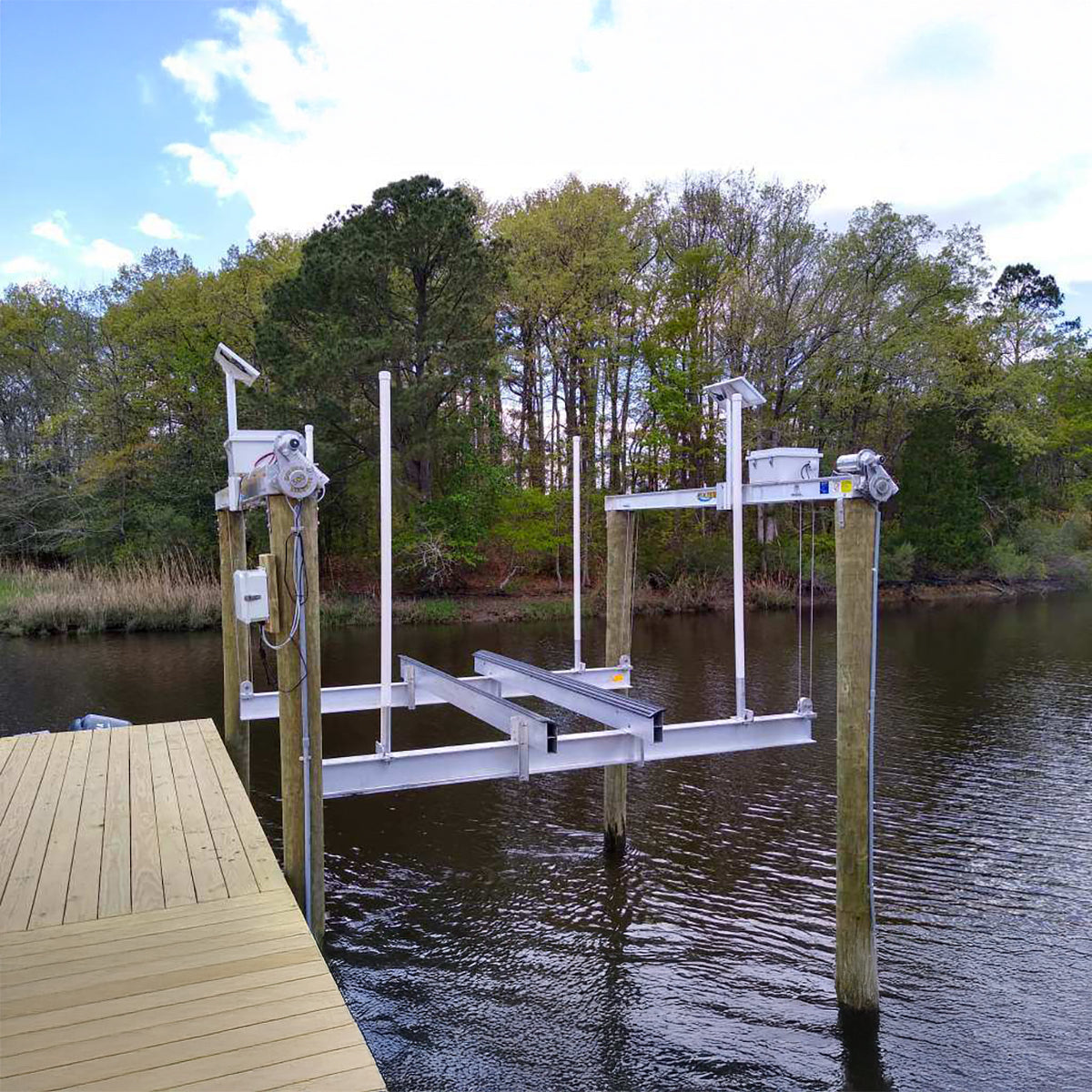

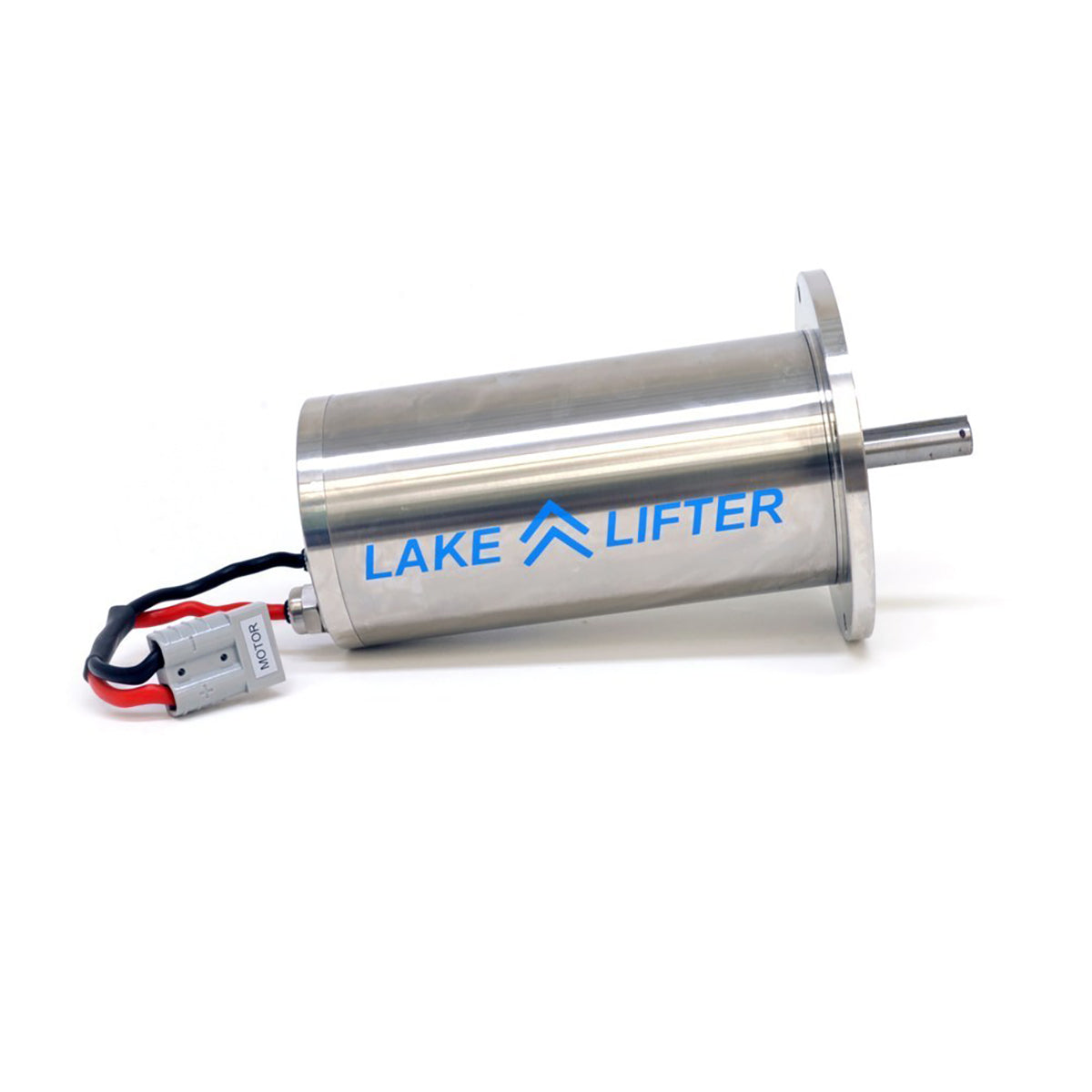

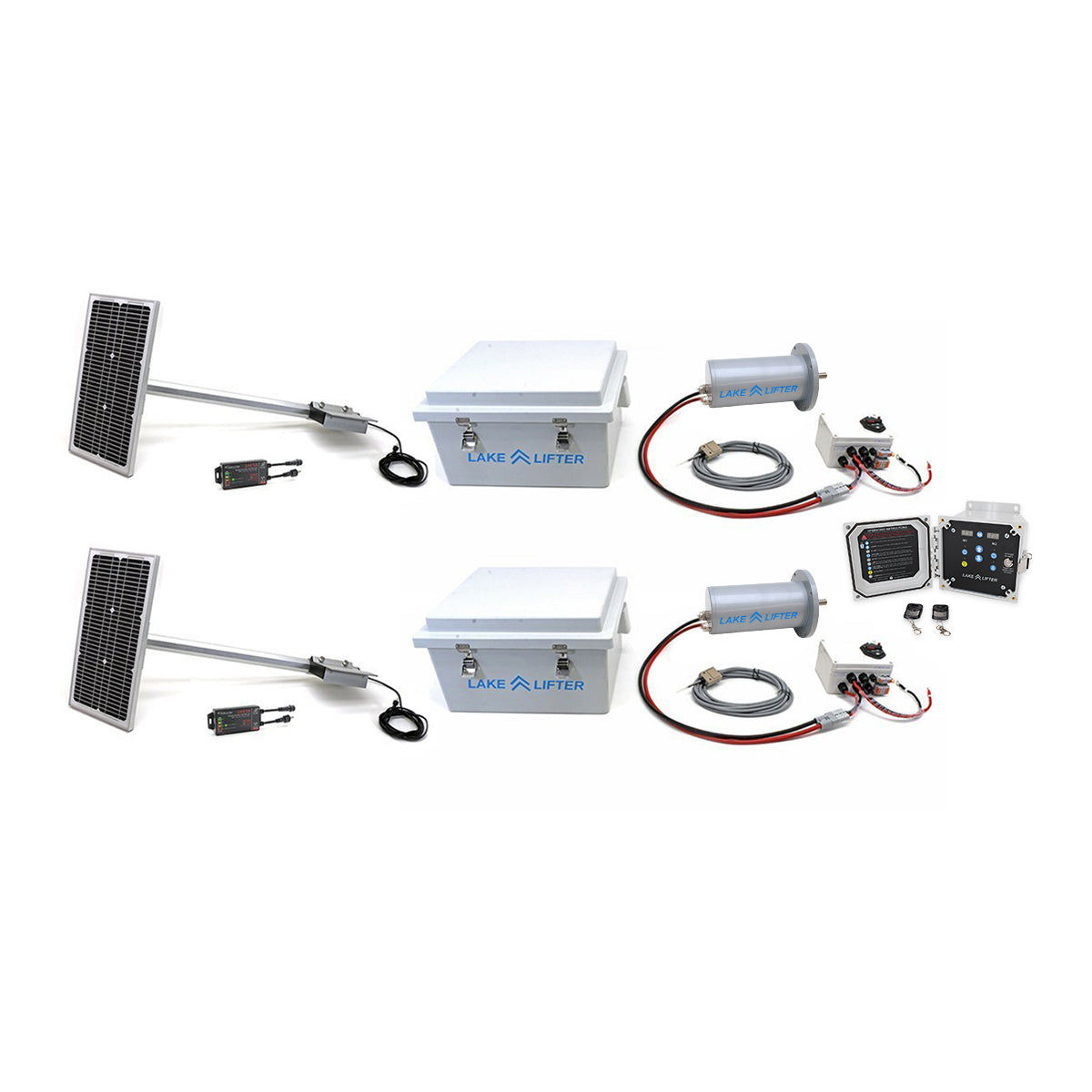

The Lake Lifter Dual DC Boat Hoist and Solar Charging Kit offers a professional all in one solution for converting A drive and E Gear boat hoists to safe and reliable DC power. This high performance system is engineered to handle dual motor boat lifts with industry standard capacity ratings ranging from 10,000 to 24,000 lbs. Available in both Epoxy Covered and Stainless Steel motor styles the kit includes 2 powerful 1.5hp marine grade DC motors that provide significantly faster lifting times than traditional AC powered systems while eliminating the risk of high voltage electrical shock around the water.

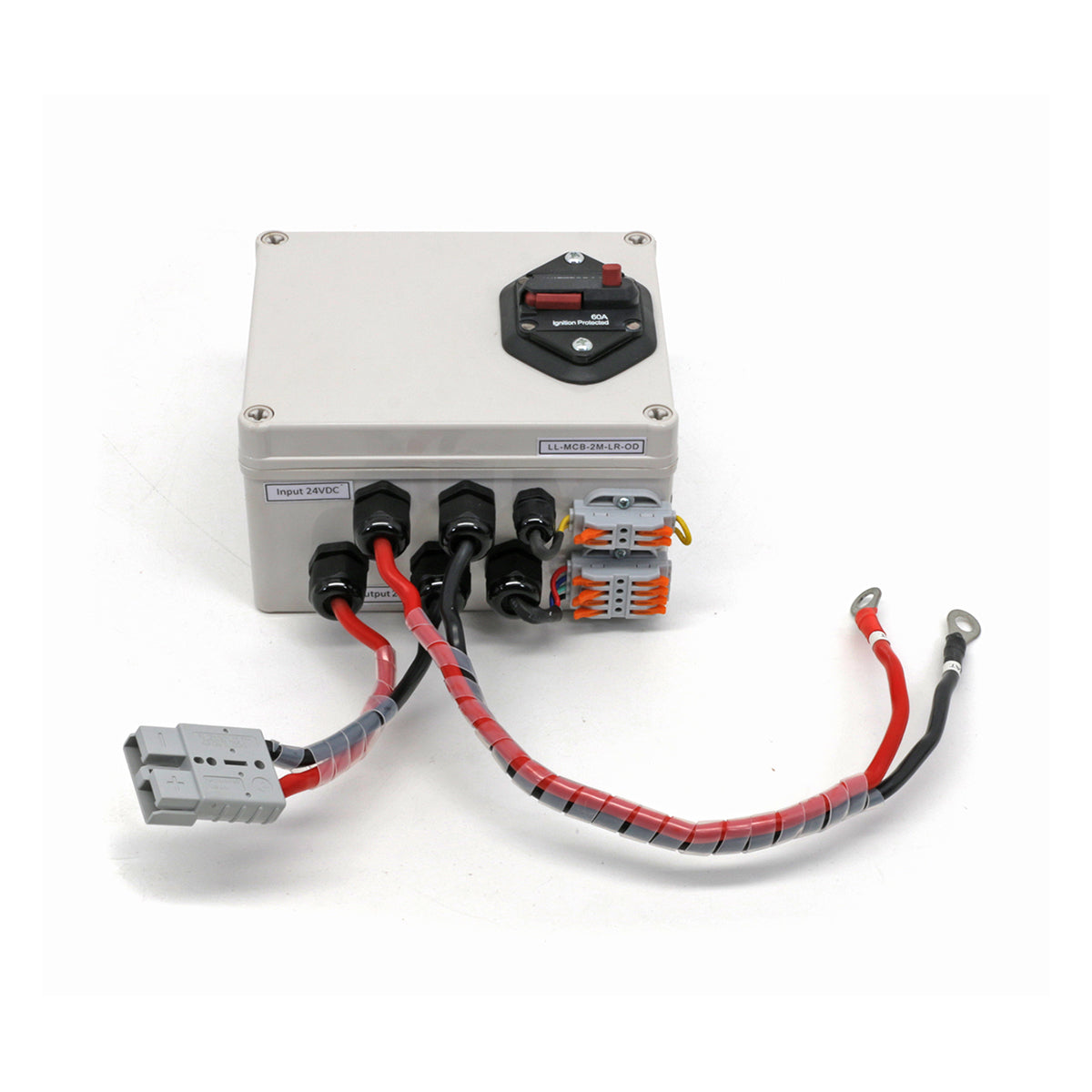

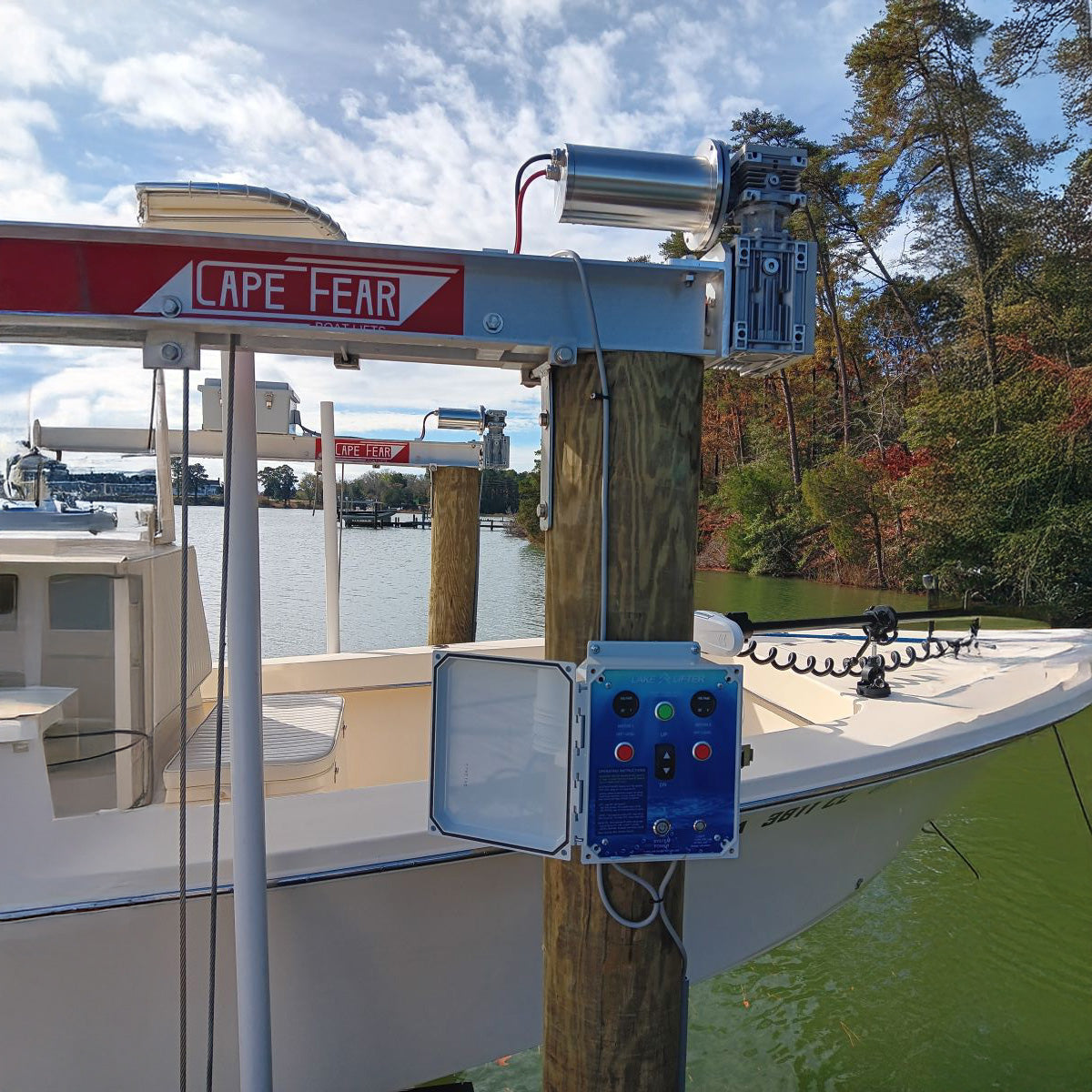

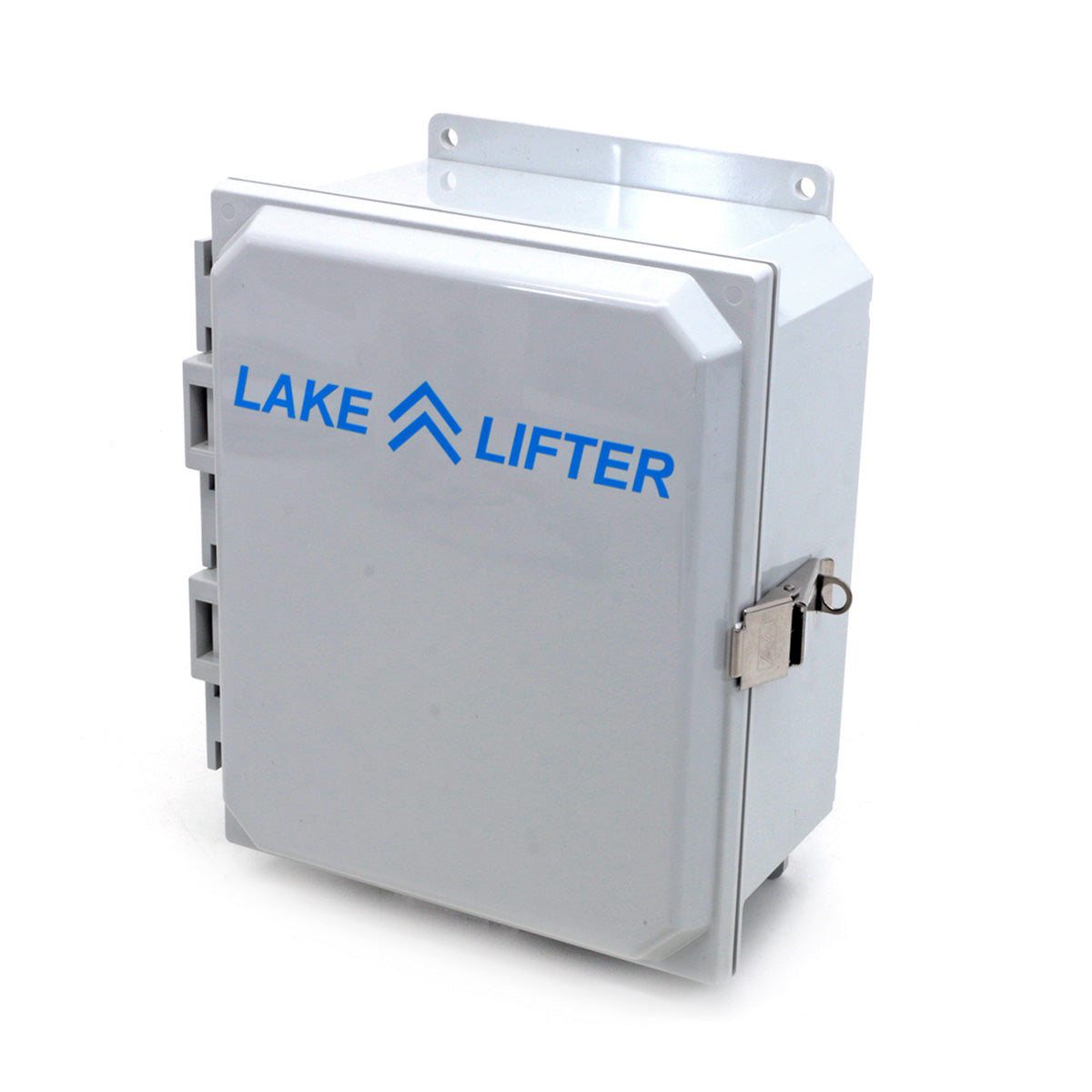

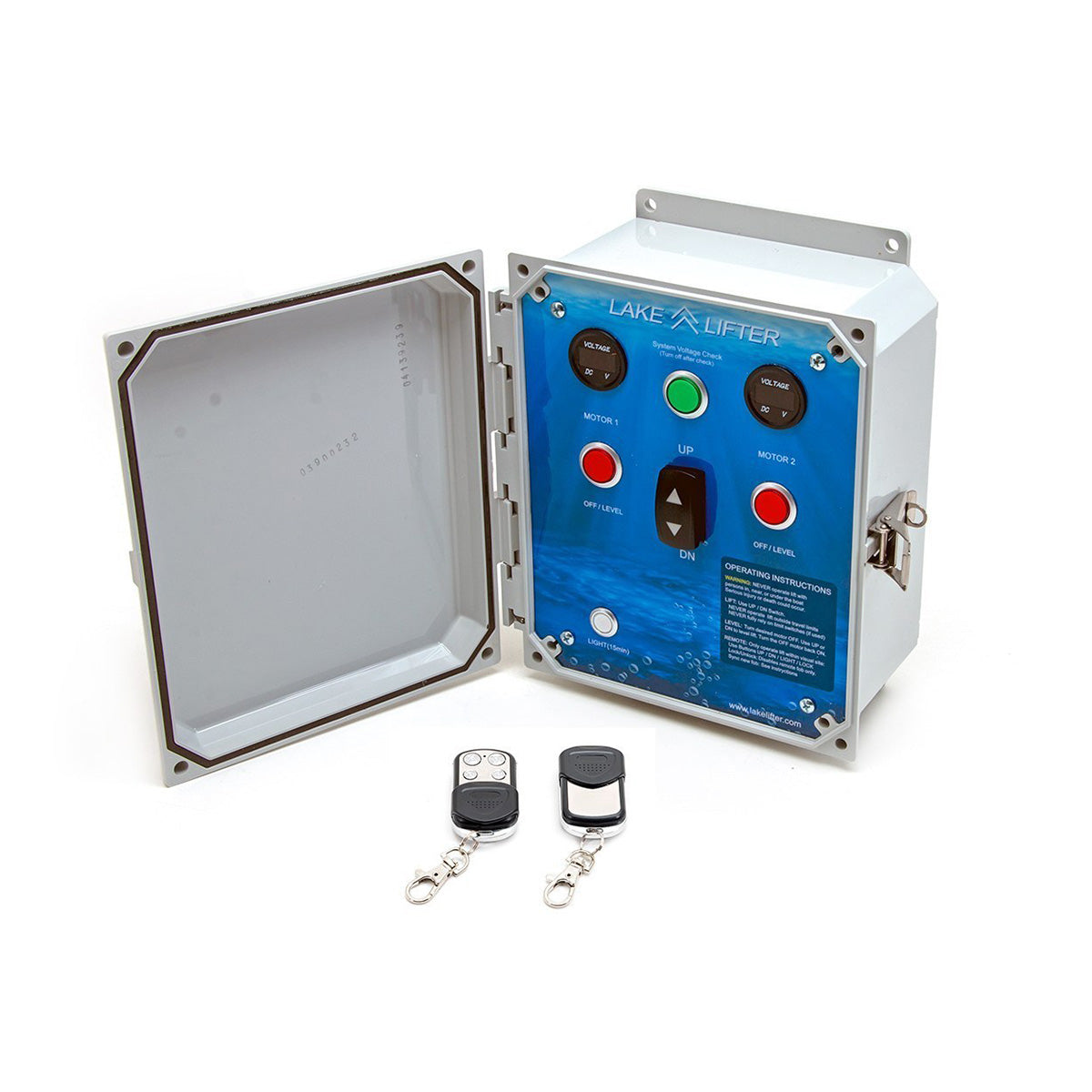

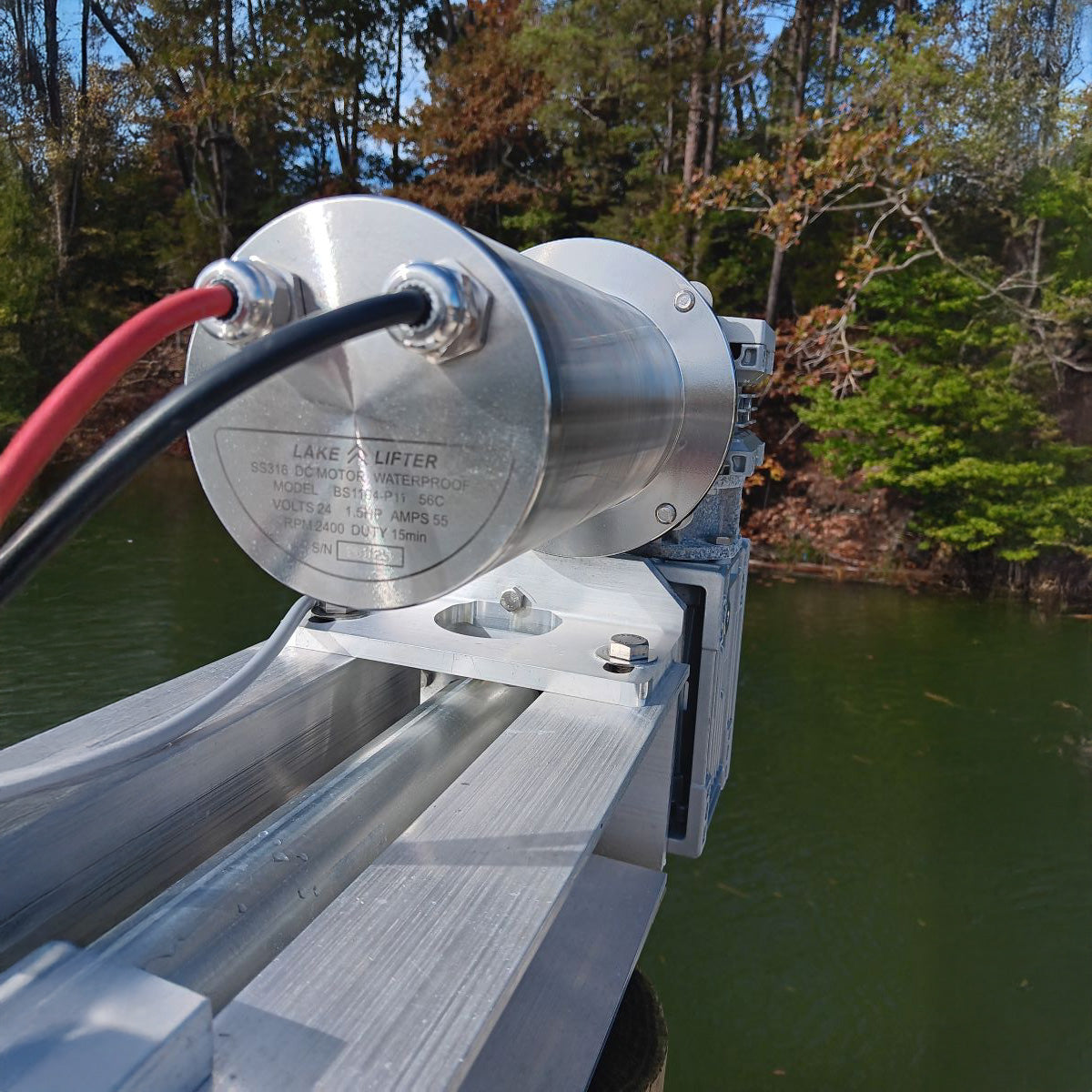

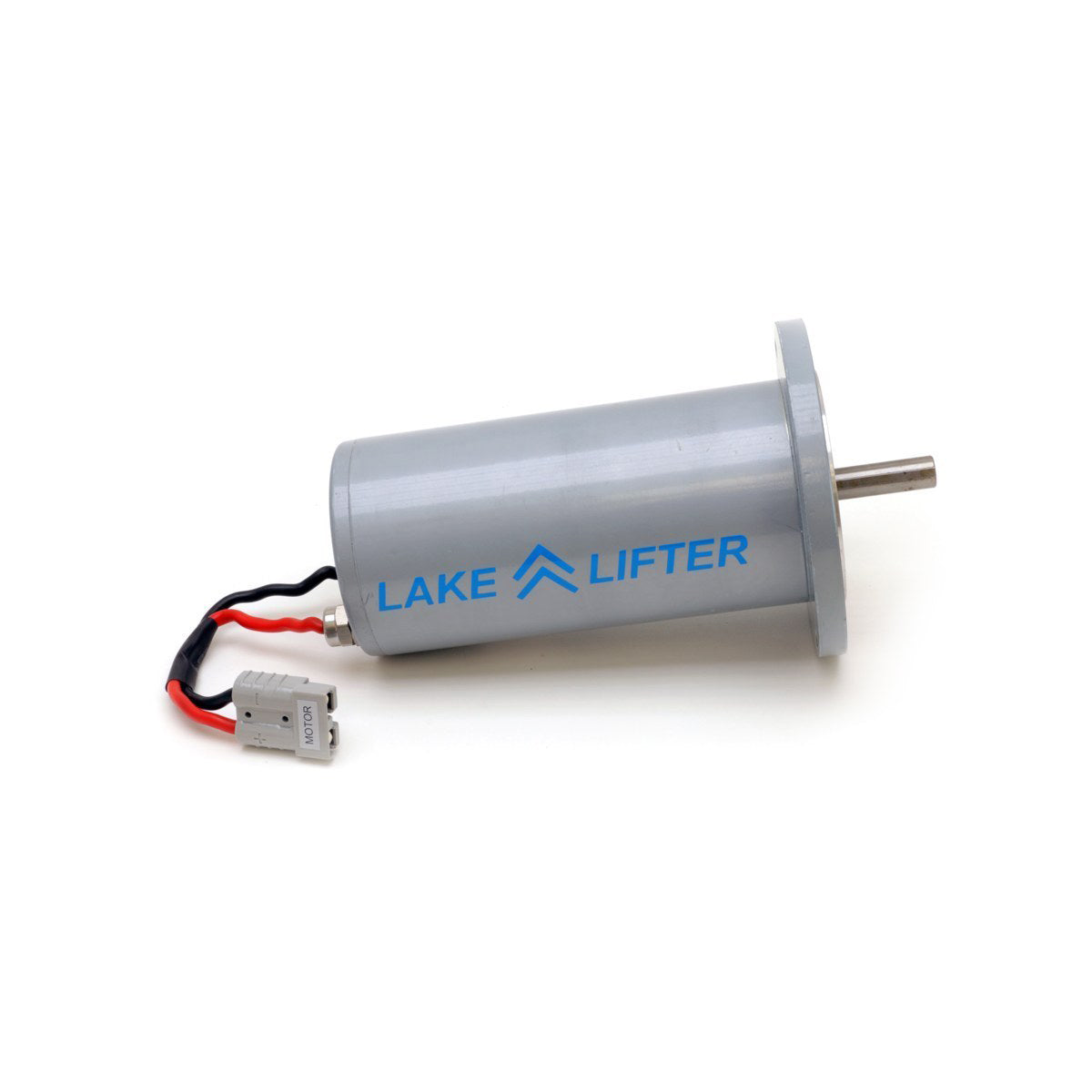

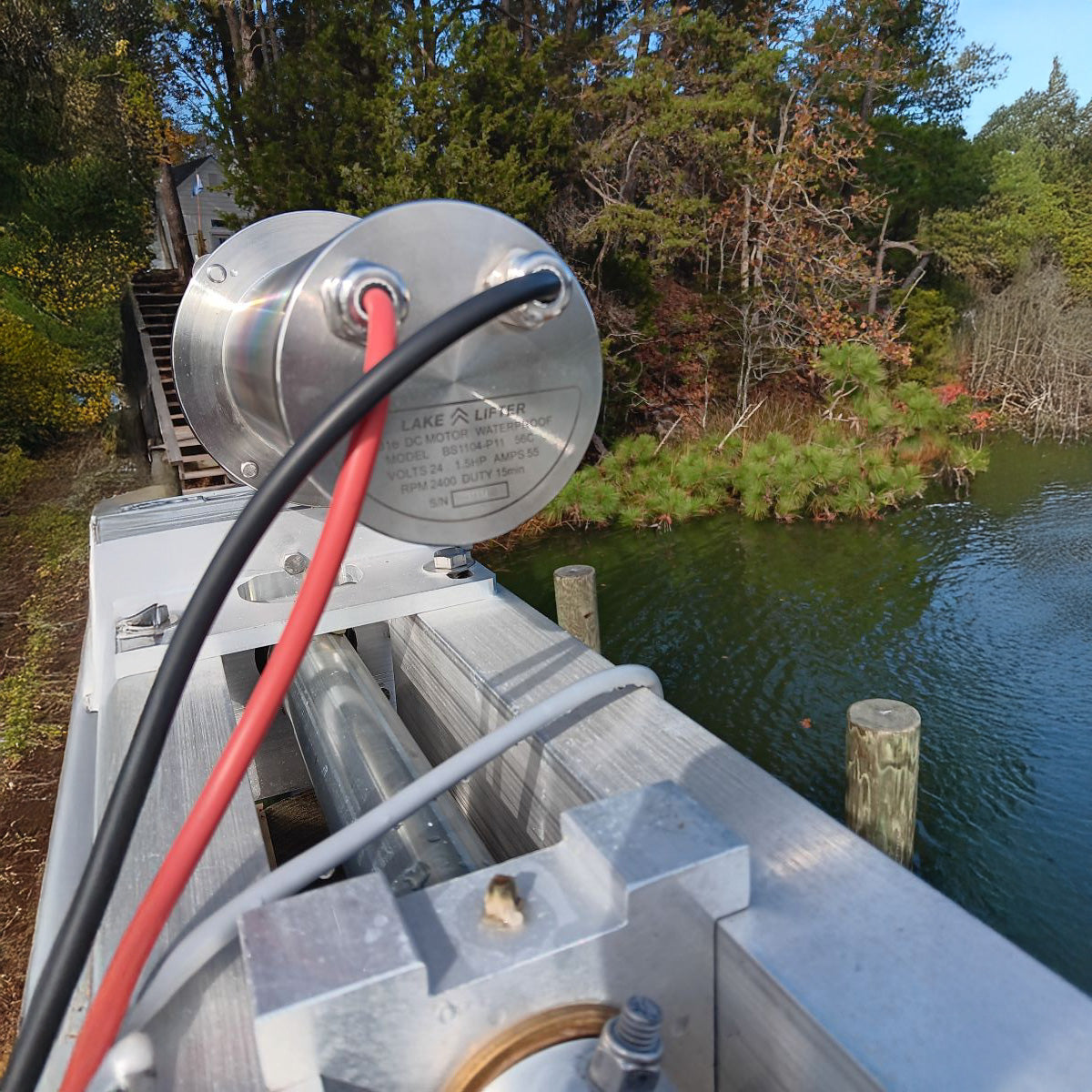

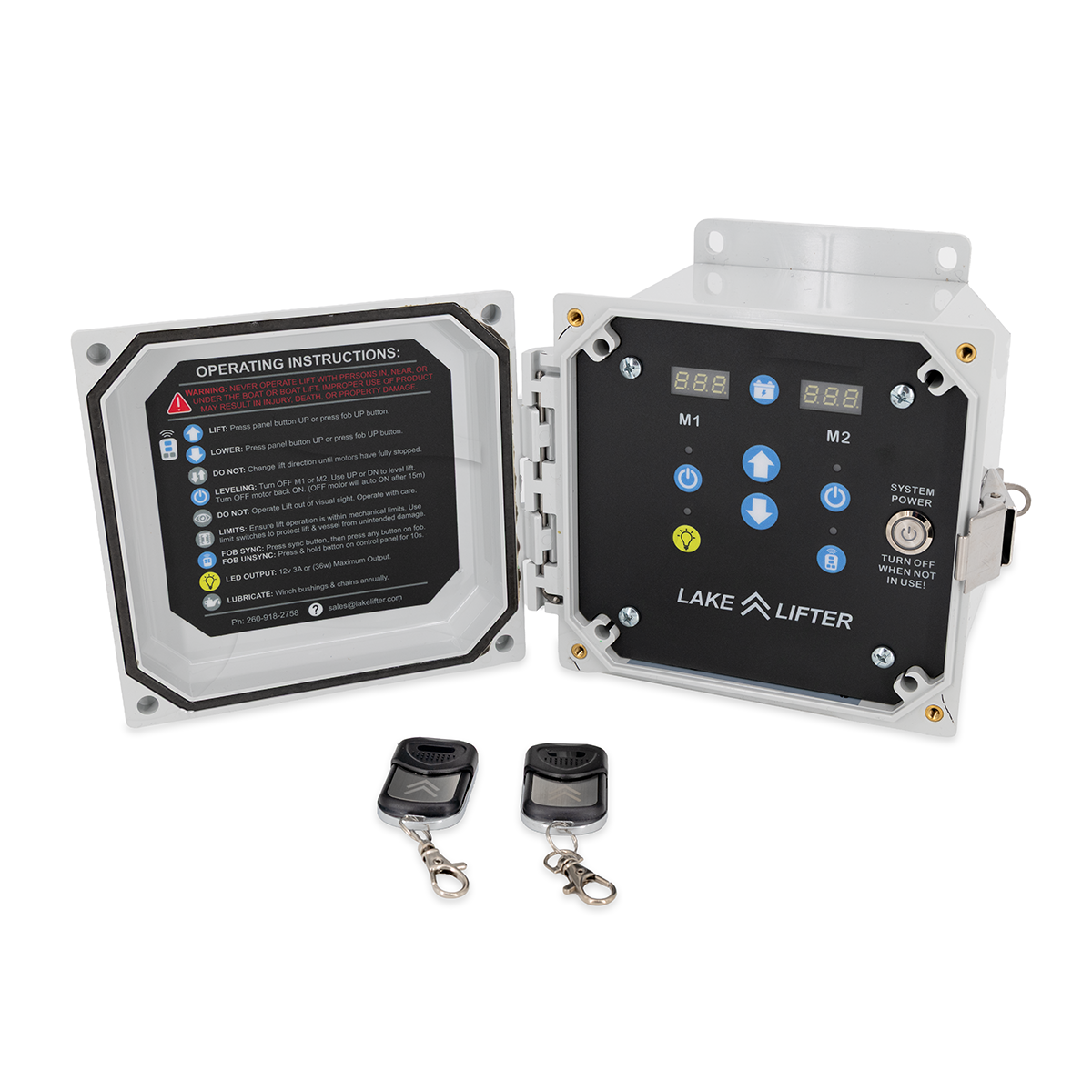

This comprehensive package features 2 individual 24v 1.5hp motors designed with sealed marine grade construction for trouble free operation in harsh environments. The motors utilize a universal mounting system that fits all flat plate style open gear hoists and features a standard 5/8 inch shaft size compatible with standard single and double pulley belt configurations. Control is managed through an advanced wireless master control box and 2 slave units allowing for operation via wireless remotes or a heavy duty manual wall switch. To ensure equipment safety the system includes 2 waterproof limit switches with 15ft cords to prevent accidental over height lifting and damage to the boat or hoist structure.

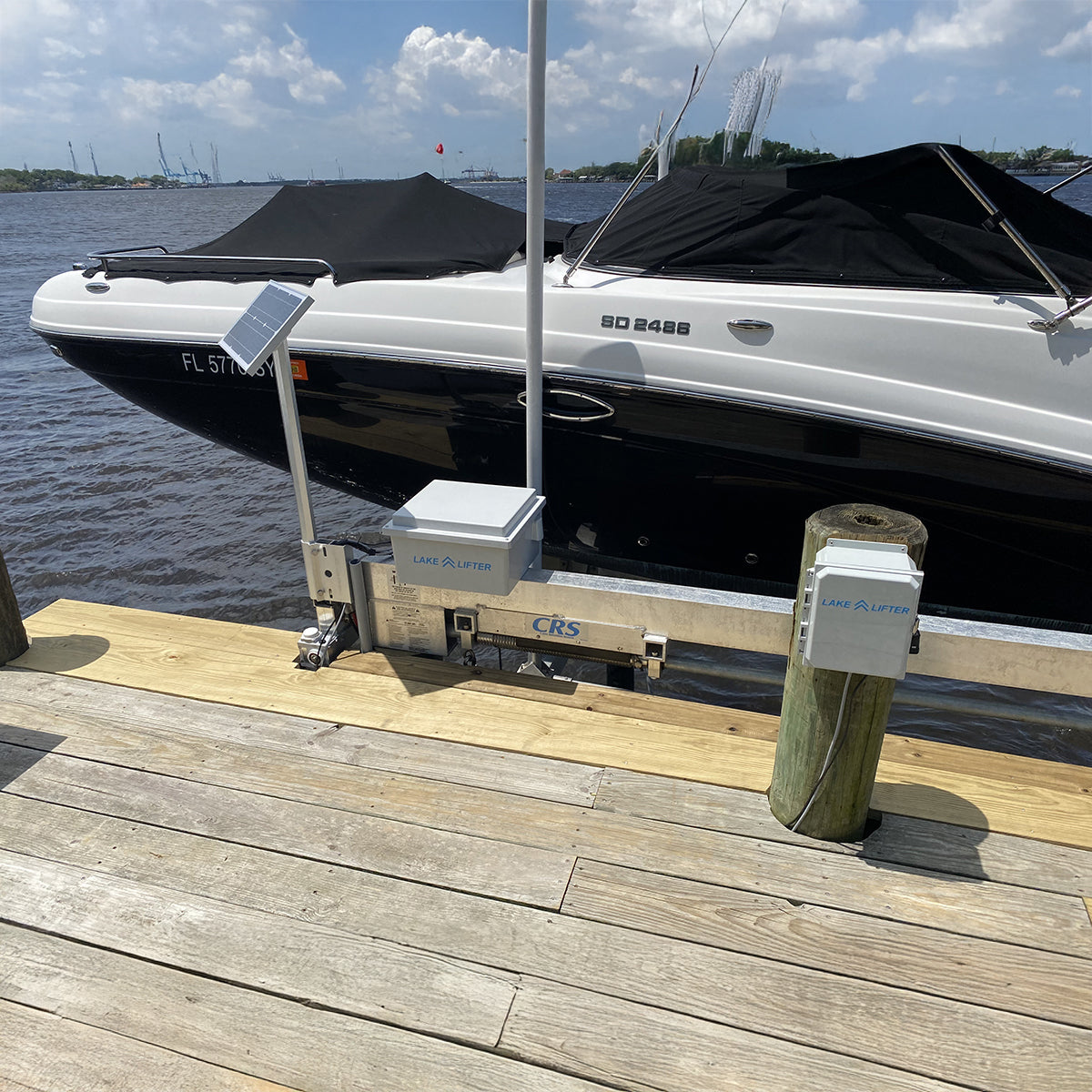

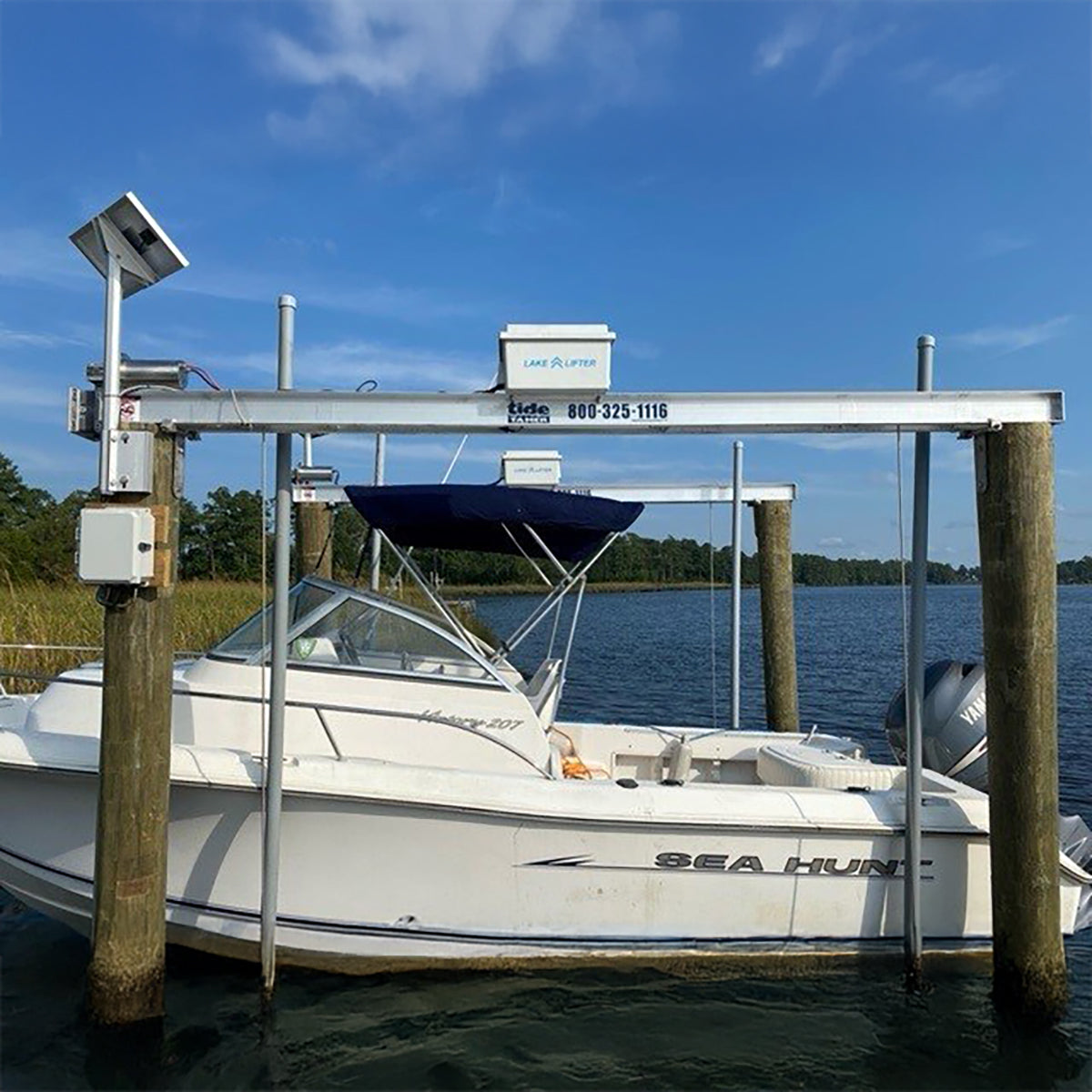

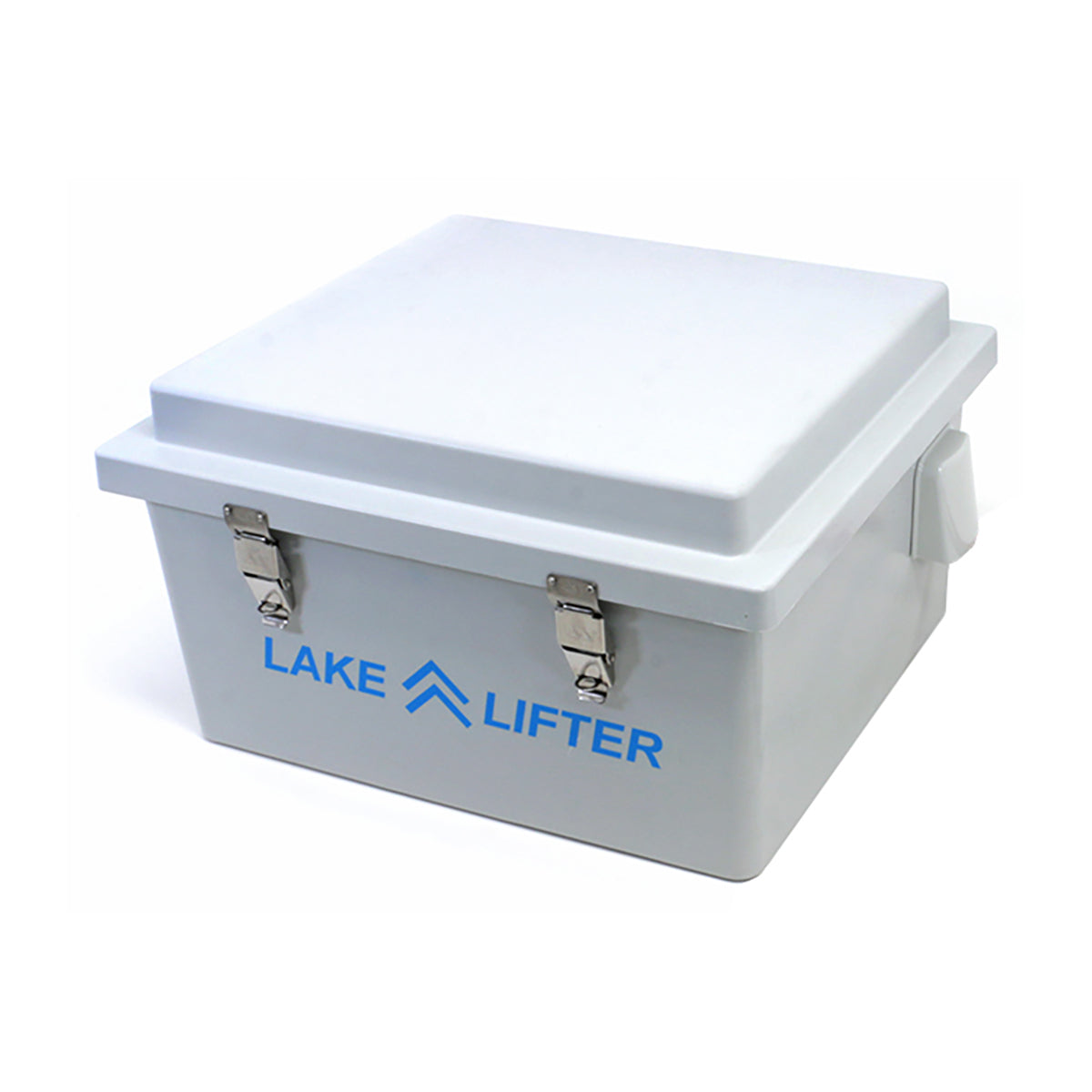

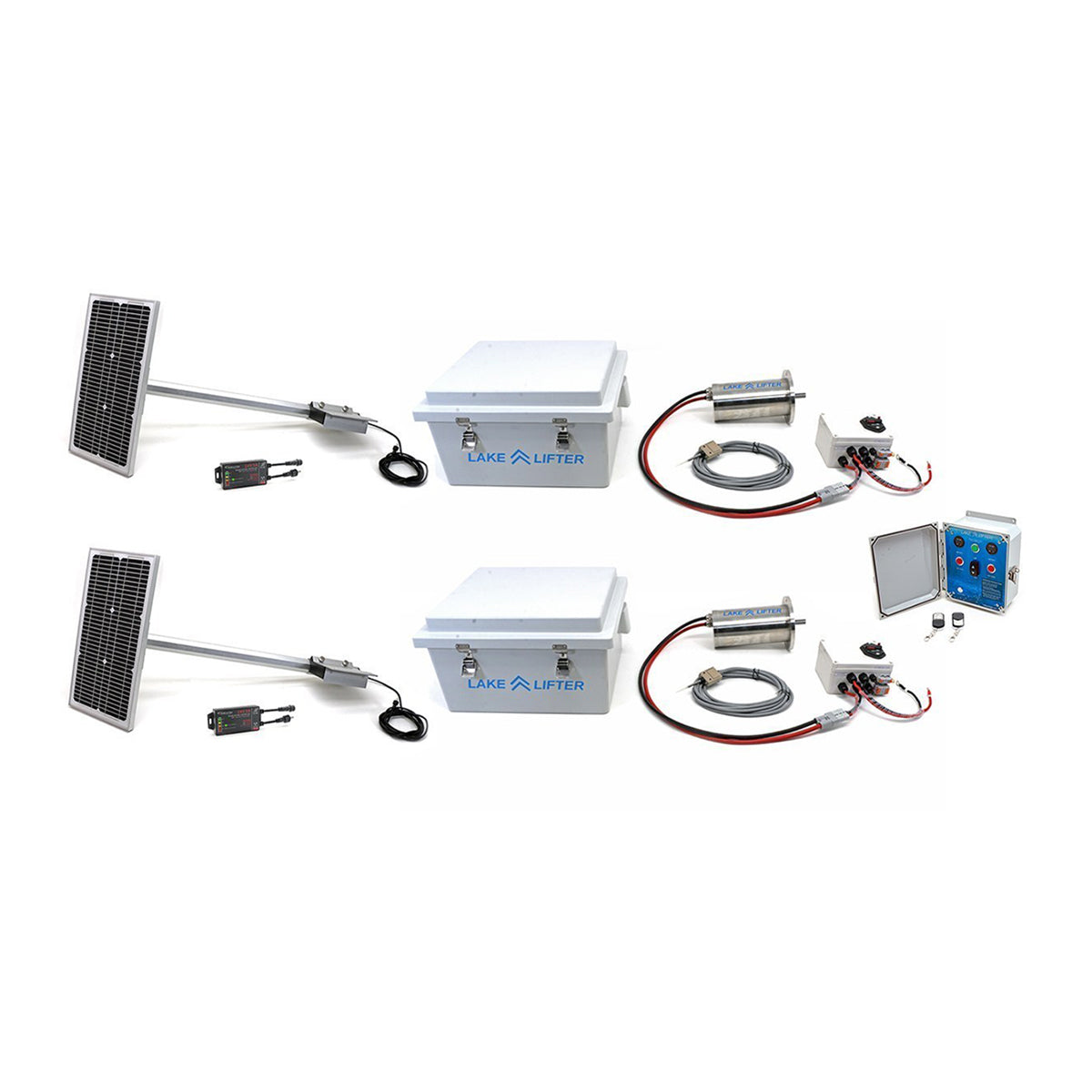

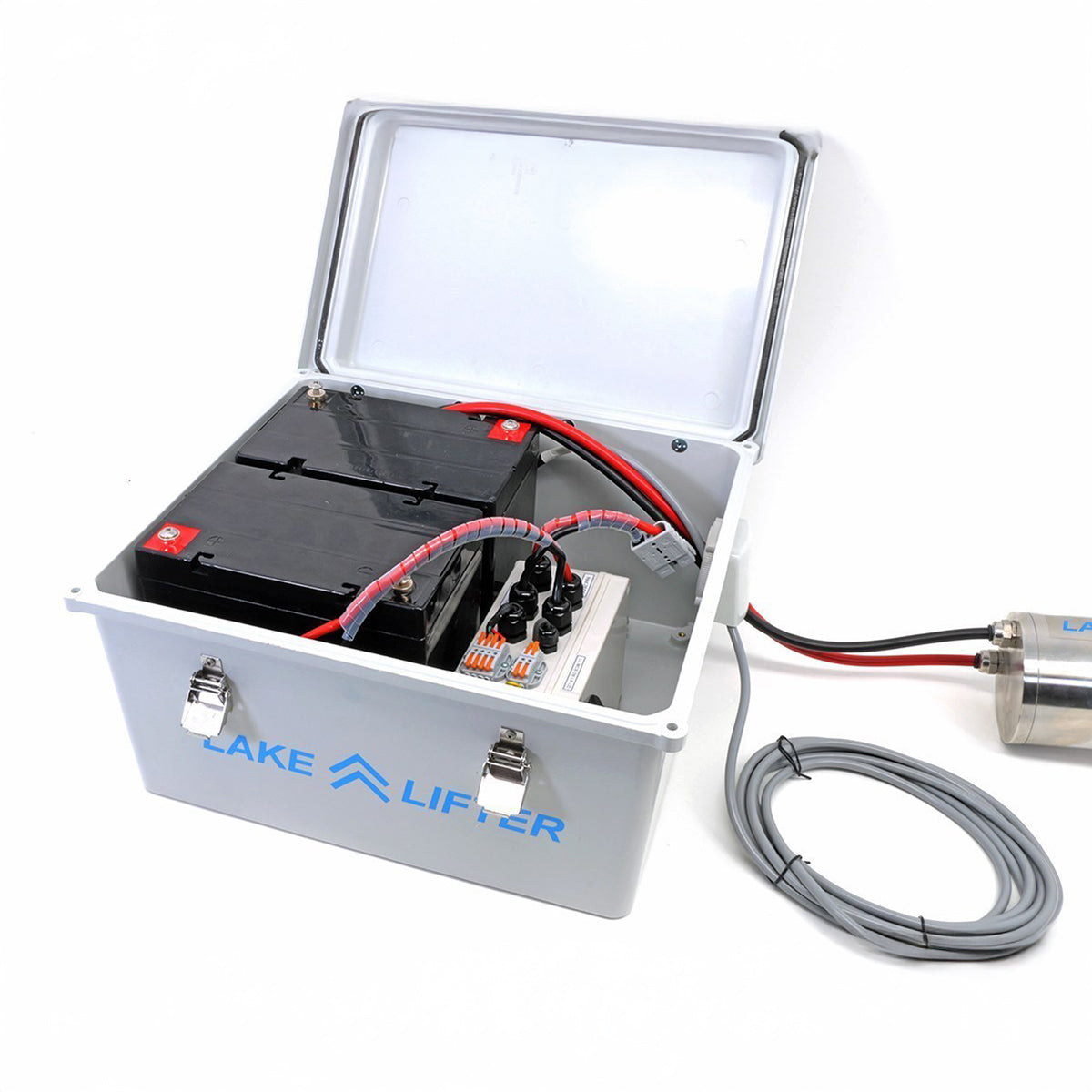

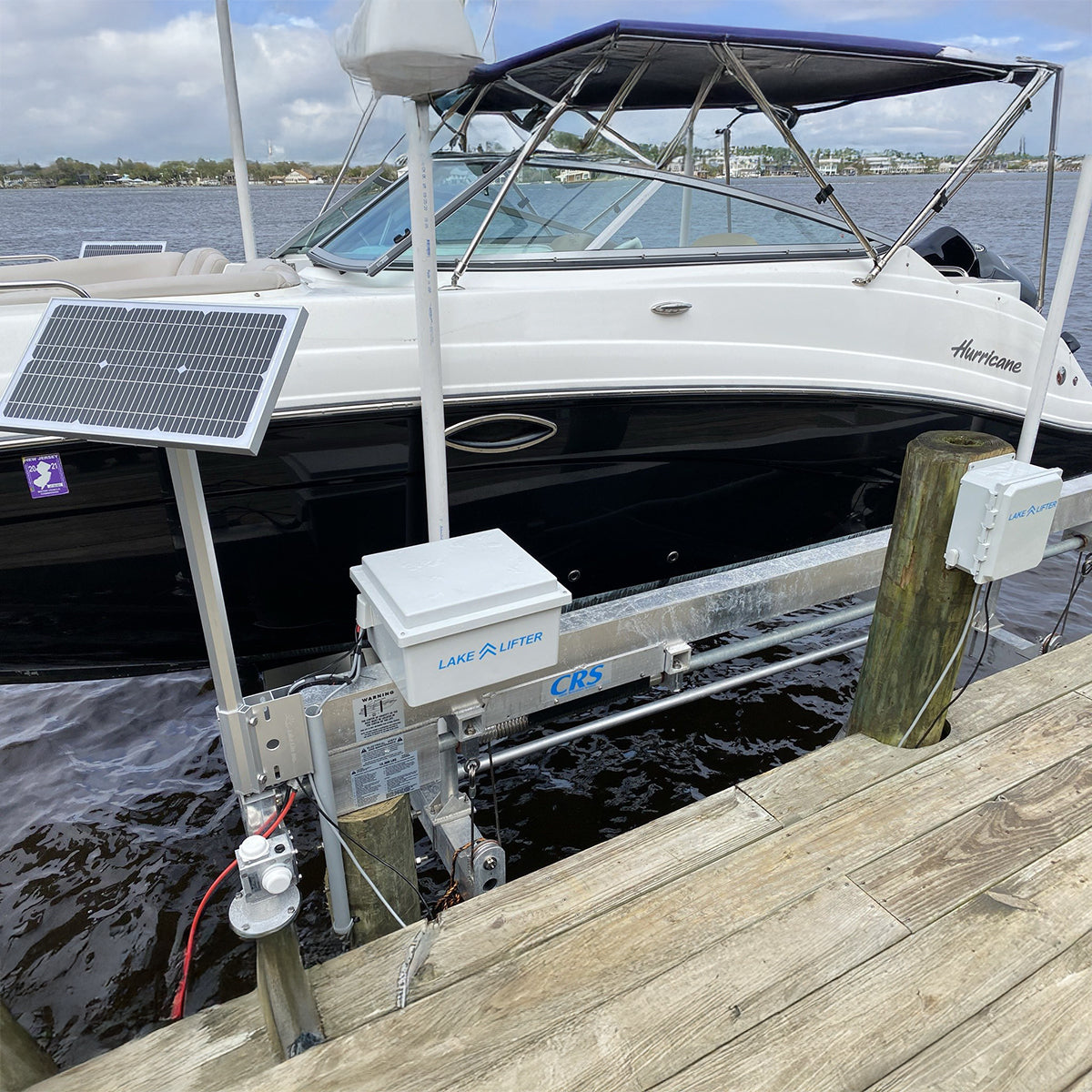

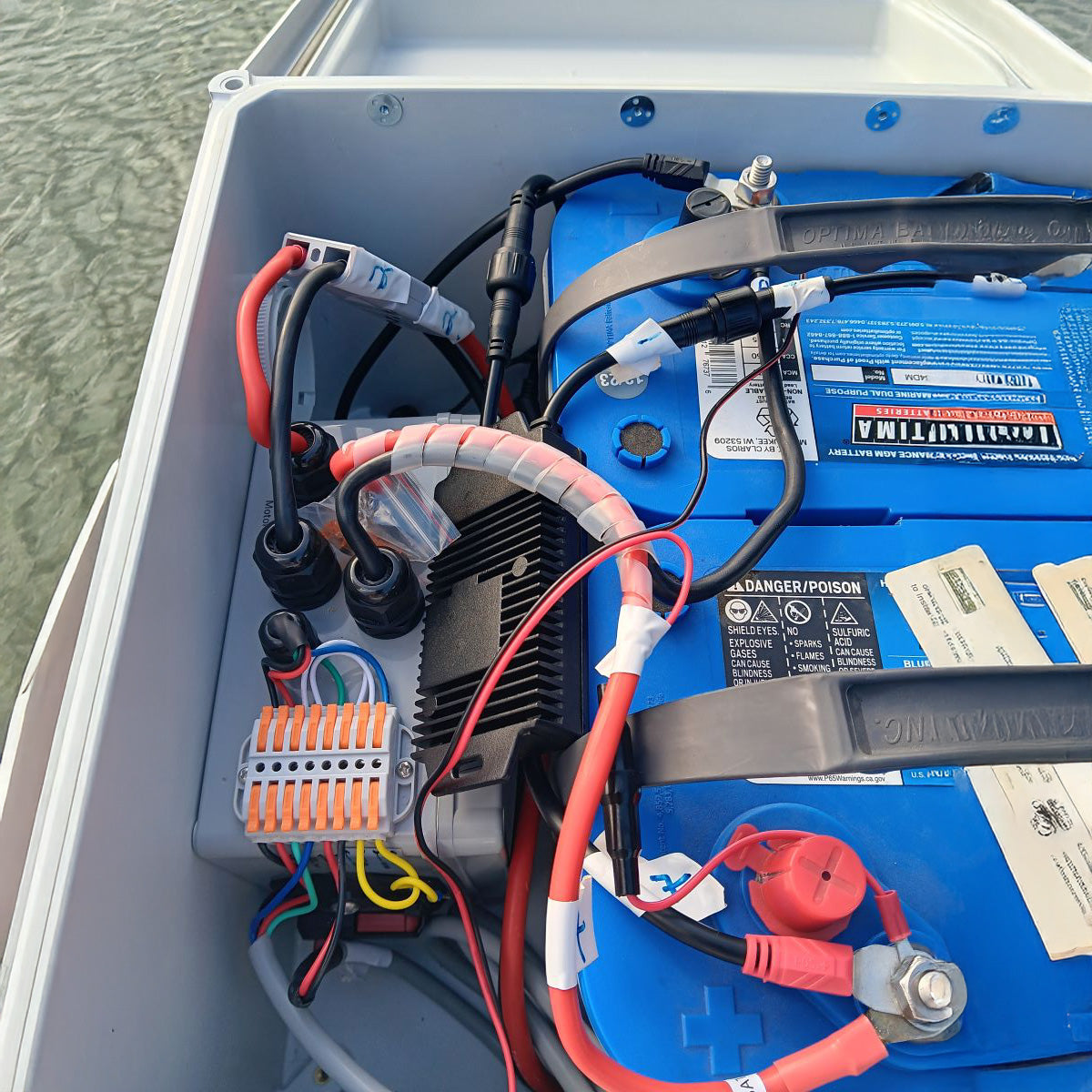

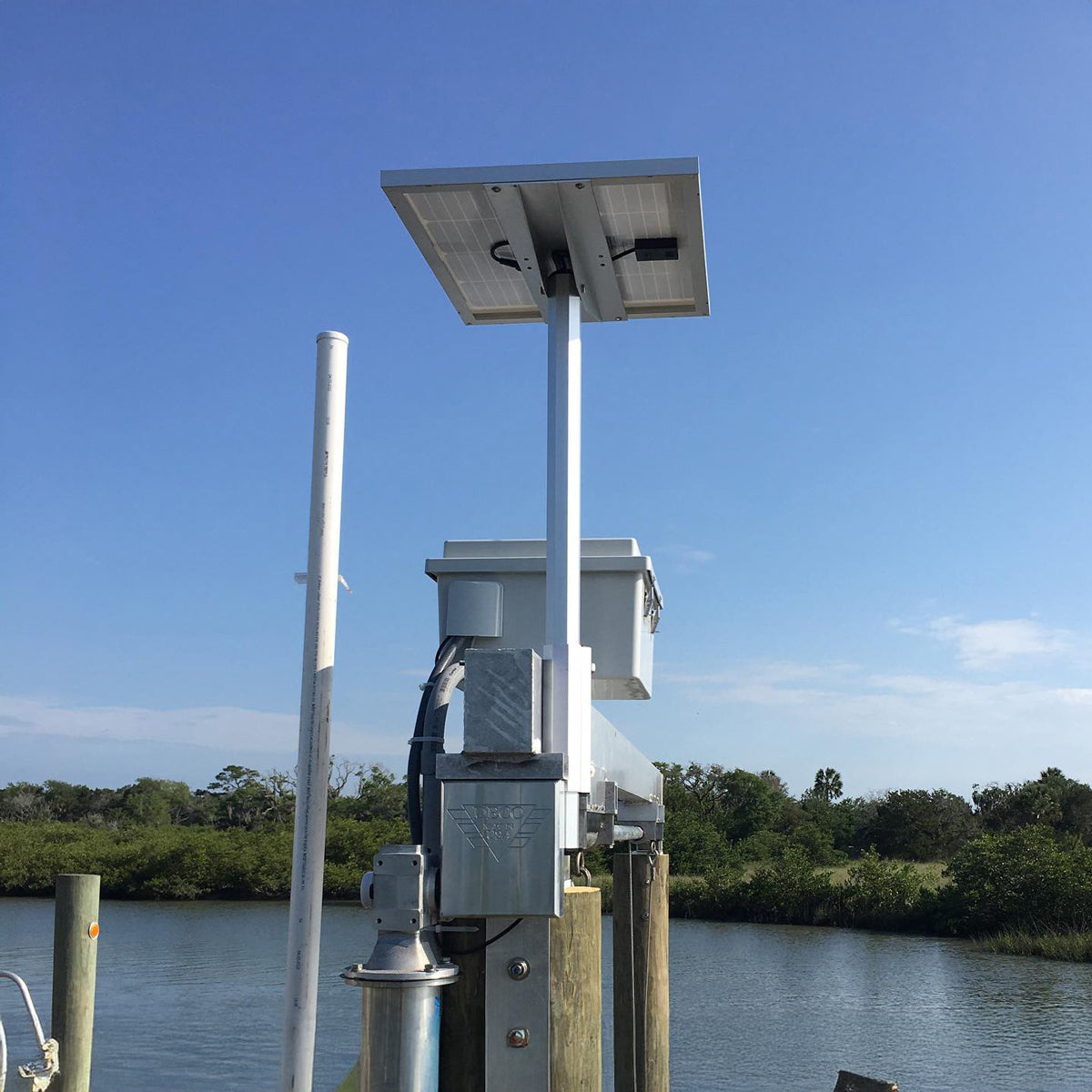

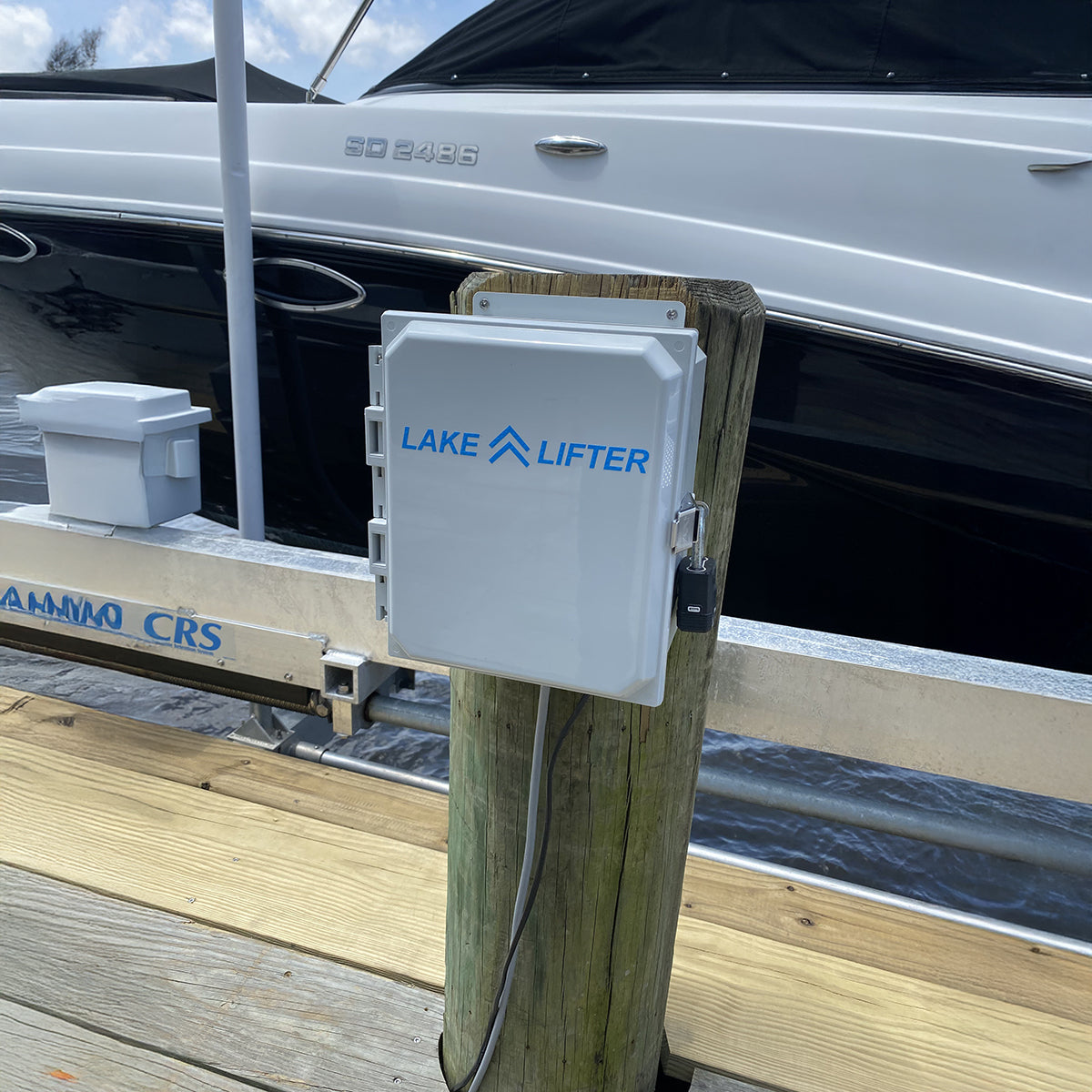

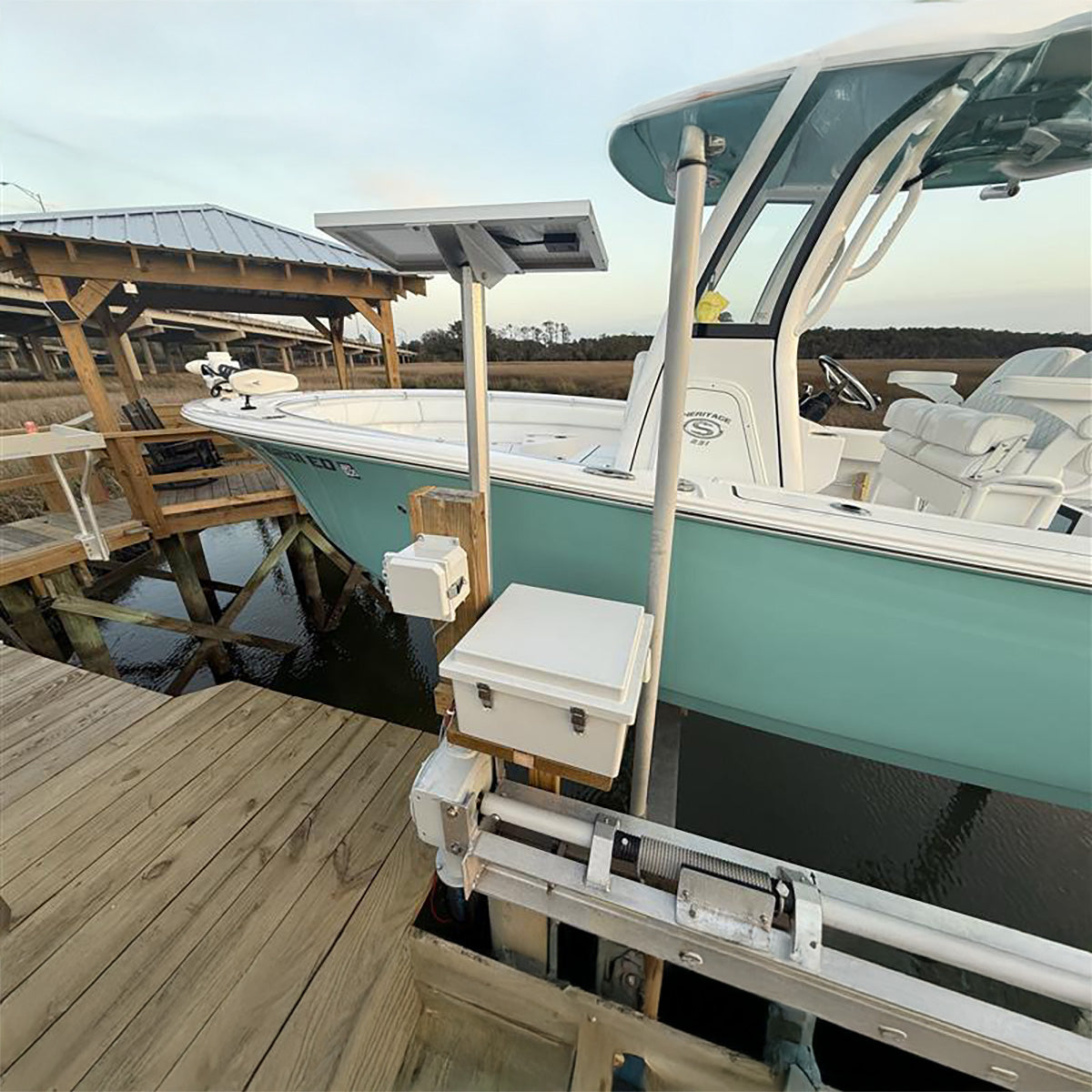

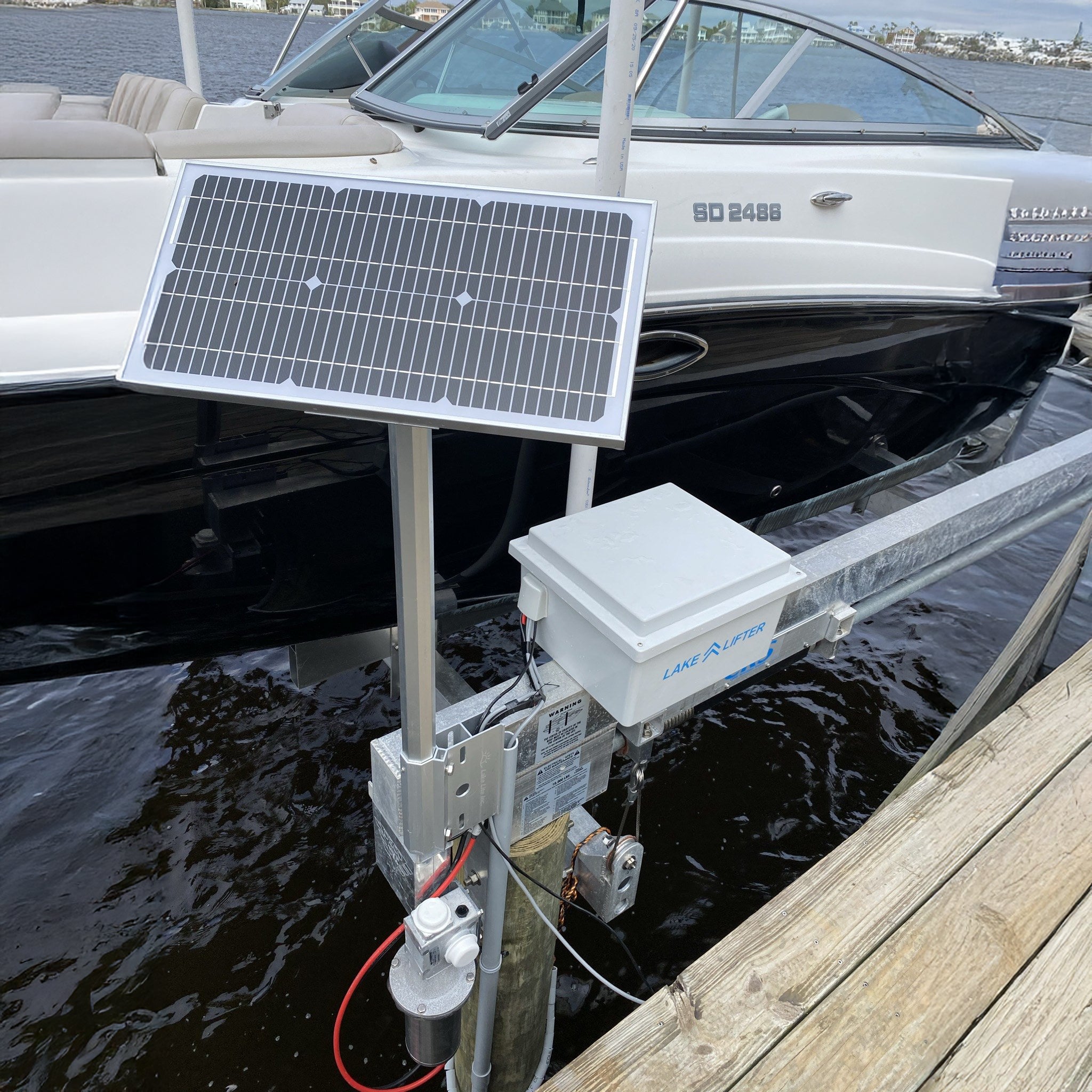

To maintain the power supply the kit includes a 40w 24v solar charging assembly consisting of 2 individual 20w 24v high efficiency monocrystalline solar panels. These panels are constructed with low iron tempered glass and anodized aluminum frames providing a lifetime rating of over 20 years. The charging system is governed by 2 solar charge regulators equipped with LED status indicators to monitor battery health. This configuration ensures that the 2 individual 12v deep cycle batteries are consistently recharged even during periods of frequent use or cloudy weather. The kit also includes a durable fiberglass battery dock box to house the batteries motor controllers and wiring in a secure and lockable enclosure.

The Dual DC Boat Hoist and Solar Charging Kit is designed for a quick and simple installation utilizing a waterproof quick connect wiring system and 80ft of control wire that can be cut to the exact length required for the dock. Safety is further enhanced by an integrated resettable breaker fuse that protects the system from failure or overload without the need for replacement parts. With its robust 24,000 lb lifting capacity and high quality weather resistant components this kit provides a modern and dependable upgrade for any heavy duty boat hoist system.
