DC 24v Dual Boat Lift Blower Motor Solar Control Box: (Two Lifts - Three Valves - A/B)

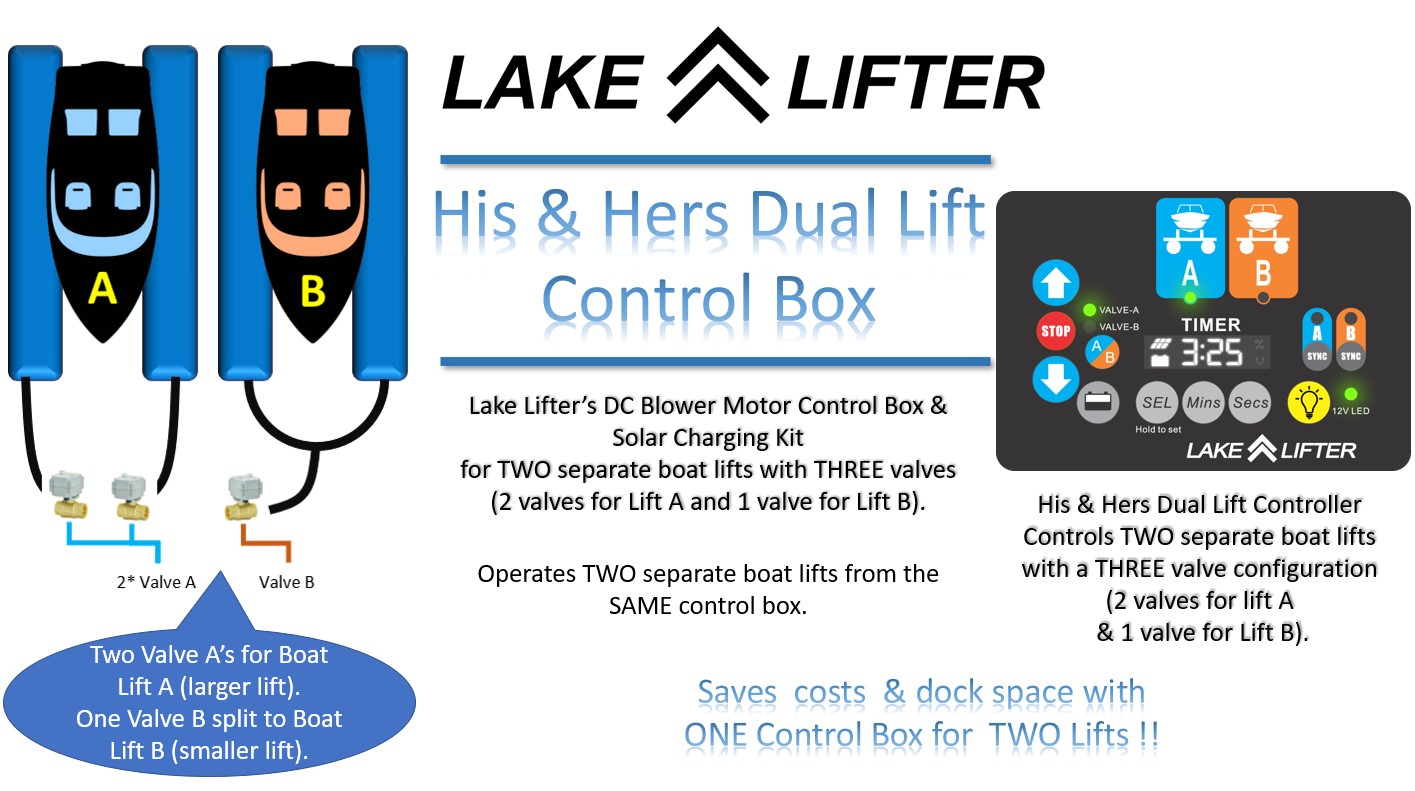

This "His & Hers" Control Box controls TWO separate boat lifts with THREE valves (2 valves for Lift A and 1 valve for Lift B). This configuration saves costs and dock space for 2-lift setups. Ideal for lifts & docks without roofs or other obstructions that would cause shading of the solar panel. Unit MUST be placed in an area which receives direct sunlight. Unit should be placed to the side of the boat which is NOT shaded by the boat, boat lift, or other objects.

Have a covered boat lift or need mounted solar panel placement options? CLICK HERE

DC 24v Dual Boat Lift Blower Motor Solar Control Box: (Two Lifts - Three Valves - A/B)

SAFER, FASTER, STRONGER: Lake Lifter’s New DC 24v Boat Lift Blower Motor Solar Control Box is an all-in-one blower motor solar control box that provides everything needed to quickly operate any air-displacement boat lift with safe and reliable DC solar power (batteries not included). This powerful unit works on all brands & styles of air-displacement boat lifts. Not sure about options? Give us a call and we’ll be happy to design & recommend the control box for your specific boat lift.

Our advanced DC 24v Solar Blower Motor Control box is a compact, easy to use design. Wireless & programmable functionality takes all the guess work out of lifting and raising your boat! Simply program the lifting and lowering times for fully automatic manual or wireless operation!

BLOWER MOTOR: Lake Lifter’s marine grade 24-volt DC blower motor is a 1400-watt brushless blower motor that is safer and faster than traditional high-voltage AC motors. The efficient design easily outperforms a 1700w AC powered motor making it the fastest & safest boat lift blower motor on the market. The brushless motor will not slow or wear like conventional brushed AC motors. This means performance does not reduce with time! Anodized marine grade construction makes it suitable for salt-water areas.

SAFE 24v DC POWER eliminates electrical shock hazards, electrical runs, and voltage loss problems around the dock.  In addition, the Lake Lifter blower motor lifts boats faster than traditional electrical motors.

MOTOR DRIVE CONTROLLER: Lake Lifter’s advanced motor drive controller provides robust power and convenience to operate Lake Lifter’s high-powered blower motor. The motor controller features LED indicators to easily notify users of motor blockage from debris or low battery voltage.

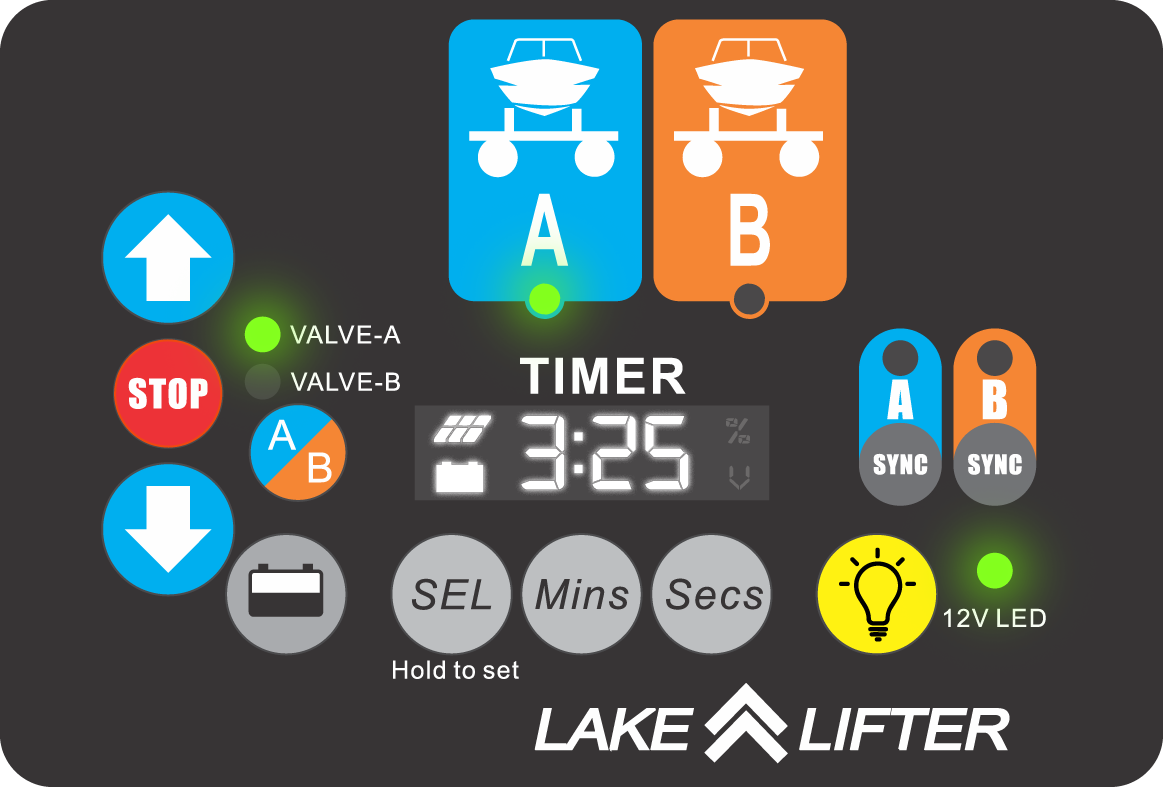

The smart controller features a digital display with a count-down timer for lifting & lowering operations, digital battery voltage and percentage information, as well as optional external light timer. The smart controller also features a built-in solar charge regulator to safely charge and protect your batteries.

The smart controller will automatically turn on the blower motor and open the valve to fill & raise your boat lift and then automatically turn off the motor and close the vale when the specified time is complete. This feature protects unnecessary battery drain from pro-longed and unnecessary motor run times. For lowering the lift, the controller will automatically open the valve, releasing air and will close after the specified time is complete. The optional LED output, when activated, will turn ON and automatically turn OFF after the set time is complete ensuring you don’t accidently leave the light on, cause the batteries to fully drain.

WIRELESS & MANUAL OPERATION: The boat lift blower motor solar control box is fully operational from a wireless key fob. In the event a key fob is lost or needs replaced, users may easily sync a new fob and operate all functions of the lift directly from the smart controller. In a rare event of dead battery needing replaced in future years, the user can easily manually override the air-valve and release air lowering the boat lift.

KEY FOB: The key fob provides a simple and convenient way to operate the boat lift and is made of a protective shell and slide cover to protect from accidental button presses. The wireless fob operates UP, DOWN, STOP/PAUSE & LIGHT functions up to 150-200ft range. The wireless fob with optional LED light makes it safe to illuminate the boat house when walking down to the dock or returning from an evening boat cruise.

BATTERY POWERED: The DC 24v Blower Motor Boat Lift Solar Control Box operates on safe DC 24v power. Two 12-volt 55A (AGM) deep cycle marine batteries are connected in series to create 24v. (Batteries Not Included) Requires 2pcs “Wheelchair size” or 12v-55A or Group 22NF sized batteries. A fuse breaker protects the system from any failure or overload & makes disconnecting or replacing batteries a snap. The fuse breaker also offers a safe and convenient way to disconnect the power when not being operated.

SOLAR FIBERGLASS BOX:  Lake Lifter's durable Fiberglass Box houses everything inside a compact 20x16x8 inch package saving precious dock and walkway space with an integrated solar panel. No longer will you need both a valve control box + separate battery box. With our All-IN-ONE blower motor solar control box, you only have one compact box on the dock!

SAFETY: Lake Lifter’s DC 24v Blower Motor Boat Lift Solar Control Box offers boat lift operators a safe and fast alternative to traditional AC powered boat lift motors. Operating on safe DC 24-volt power, the risk of electrical shock is eliminated.  The powerful 24v Boat Lift Solar Charging System provides abundant recharging power to keep boat lift batteries fully charged and ready for use.

SOLAR PANEL: Lake Lifter manufactures the highest quality solar panels available rated for 20 years. With an emphasis on cell quality, reliability, and longevity, Lake Lifter’s solar charging panels meet the highest customer standards. Our panels feature monocrystalline cells, a superior solar technology providing high efficiency. Excellent low lighting performance, single-crystal, silicon cell panels have a long lifespan, durability, and reliability. These modules are sealed with low iron tempered glass and anodized aluminum alloy frames, integrated directly onto the fiberglass for compact spaces.

WIRING: The waterproof connect wiring system with inline diode, reverse wiring protection and internal fuse provides fast, safe and simple installation. New heavy-duty wiring with waterproof connectors provides added protection from the elements.

JUMPER: Heavy duty jumper wire is included to connect two 12v batteries in series to create 24v. (Just supply two 12v-55A batteries and you’re ready to go!)
