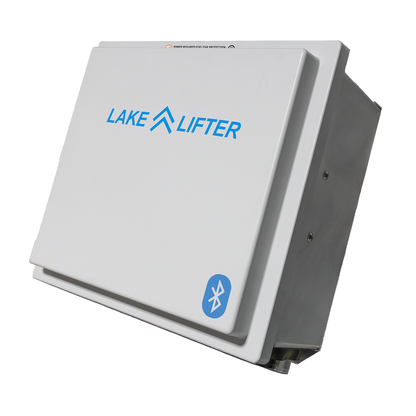

AC Bluetooth Wireless Boat Lift Blower Motor Control Box + Leak Guard
A professional all-in-one AC control box for air displacement boat lifts with integrated Leak Guard protection. Available in 1-motor configurations with 1, 2, 3, or 4 valves, or a high-speed 2-motor, 2-valve configuration. Bluetooth and Wi-Fi connectivity, smartphone and smartwatch control, programmable timers, DC LED lighting output, and a compact weatherproof fiberglass enclosure compatible with all brands and models of air-powered lifts.
Choose Your Configuration: Select the motor and valve count that matches your lift.
1 Motor, 1 Valve – one hose distributes air to all lift tanks; the most common and economical setup (14x12x8" enclosure)
1 Motor, 2 Valves – each valve feeds its own air hose for precise control (14x12x8" enclosure)
1 Motor, 3 Valves – individual hose control for large single-lift systems (14x12x8" enclosure)
1 Motor, 4 Valves – four dedicated hoses for balanced airflow (16x14x8" enclosure)
2 Motors, 2 Valves – one motor per valve for maximum lift speed (18x16x8" enclosure)
1 or 2 Motors
AC powered
1–4 Valves
Air management
Leak Guard
Auto compensation
BT / Wi-Fi
App + fob control
Universal
All air-powered lifts
Auto Timer
Programmable cycles
LED Output
DC lighting control
Auto Updates
Firmware OTA
Air Management & Universal Fit
The single-valve configuration connects one primary valve to an air hose that distributes air to all lift tanks, while the 2, 3, and 4-valve configurations connect each valve directly to an individual air hose for precise, balanced control of larger lift systems. Every configuration is compatible with all major brands and models of air displacement lifts, and the compact industrial fiberglass weatherproof enclosure mounts easily to any vertical post to preserve dock space and keep walkways clear. The 110V to 120V AC marine-grade blower motor is housed within the enclosure, built to withstand harsh waterfront environments.
2-Motor Speed Advantage
The 2-motor, 2-valve configuration dedicates one motor to each valve, delivering significantly faster lifting and lowering speeds than conventional single-motor units. It is housed in a compact 18x16x8 inch weatherproof fiberglass enclosure that mounts to any vertical post.
Integrated Leak Guard Protection
Leak Guard continuously monitors for water intrusion within the lift tanks and automatically activates the blower to raise the lift if a leak is detected, protecting the vessel even when the owner is away. The system logs the number of automatic activations so owners can differentiate between minor seepage and more serious structural concerns upon their return.
Smart Connectivity & Controls
Operate your lift without physical access to the control box via smartphone, smartwatch, or the included long-range wireless key fobs. Integrated Wi-Fi and Bluetooth support remote access and automatic software updates, and programmable timers automate lifting and lowering sequences based on the specific requirements of your boat. A DC LED output provides centralized control of compatible dock lighting systems. The 1, 2, and 3-valve models include a 14-foot GFCI-protected power cord; the Coastal Series features an internal GFCI and a shorter cord for docks without roof coverage.
