AC Boat Lift Blower Motor Control Box: (One Lift - Three Valves)

This AC Boat Lift Blower Motor Control Box: (One Lift - Three Valves) controls ONE boat lift with three valves for increased air flow. All valve air hoses go directly to all tanks. This configuration raises and lowers faster than a 1 or 2 valve systems. Great for larger lifts with larger volume air tanks.

AC Boat Lift Blower Motor Control Box: (One Lift - Three Valves)

SAFER, FASTER, STRONGER: Lake Lifter’s NEW AC Boat Lift Blower Motor Control Box: (One Lift - Three Valves) is an all-in-one blower motor control box that provides everything needed to quickly operate any air-displacement boat lift with safe and reliable AC power. This powerful unit works on all brands & styles of air-displacement boat lifts. Simply mount the control box to any vertical post to save precious dock space and connect your hose, and you’re ready to go! Not sure about options? Give us a call and we’ll be happy to design & recommend the control box for your specific boat lift.

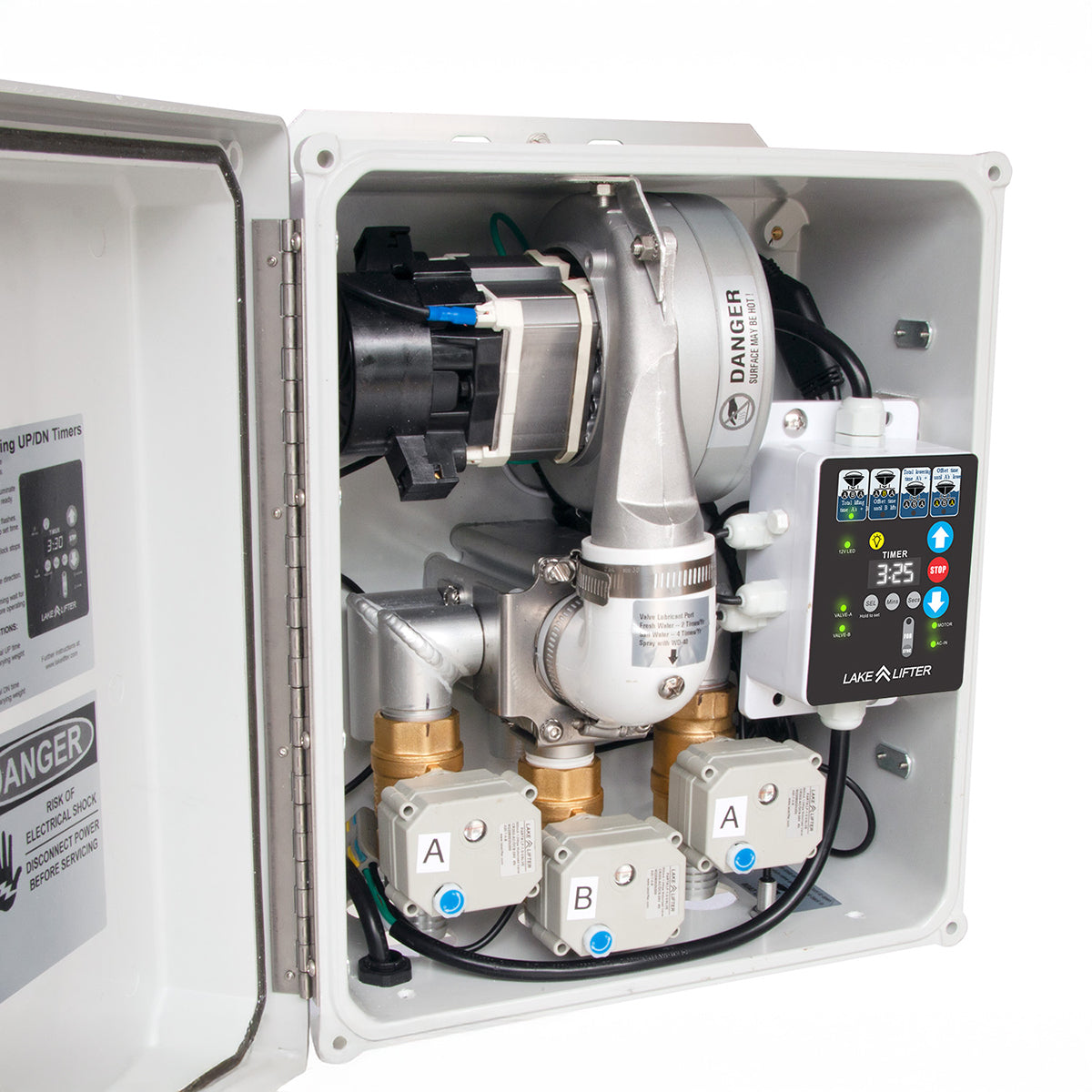

Our advanced AC Boat Lift Blower Motor Control Box: (One Lift - Three Valves) is a compact, easy to use design. Wireless & programmable functionality takes all the guess work out of lifting and raising your boat! Simply program the lifting and lowering times for fully automatic manual or wireless operation!

BLOWER MOTOR: Lake Lifter’s marine grade 120v AC Blower motor with 1700 watt brushed motor outperforms other motors in the industry, providing maximum air flow to raise lift faster.

MOTOR DRIVE CONTROLLER: Lake Lifter’s advanced motor drive controller provides robust power and convenience to operate Lake Lifter’s high-powered blower motor. The motor controller features LED indicators to easily notify users of motor blockage from debris or low voltage.

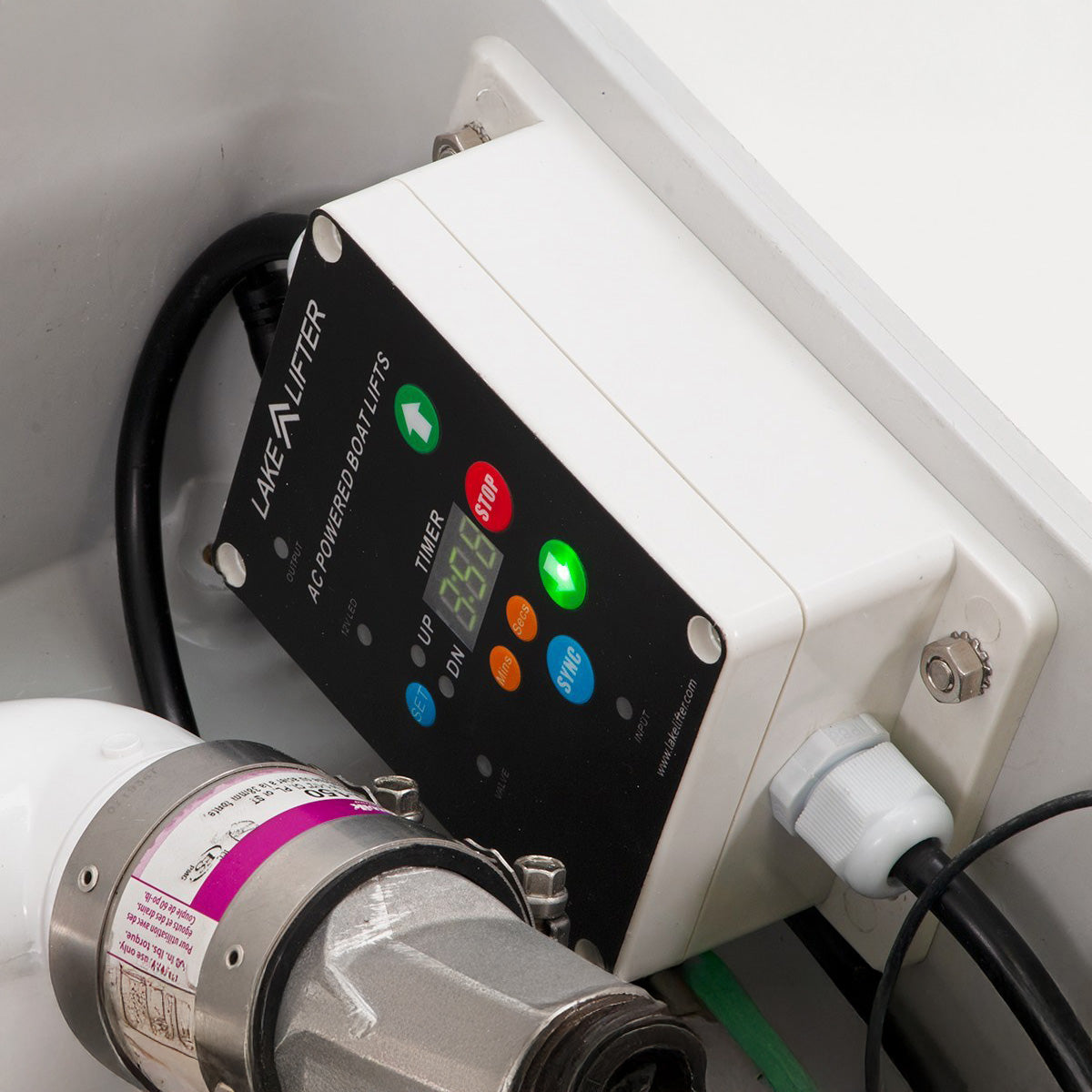

The SMART CONTROLLER features a digital display with a count-down timer for lifting & lowering operations and optional external light timer. The smart controller also features GFCI protection. Standard models include a 14ft GFCI protected power cord which can easily be shortened to meet your needs. Out coastal series is used for non-roof covered docks with internal GFCI and short cord.

The smart controller will automatically turn on the blower motor and open the valve to fill & and raise your boat lift and then automatically turn off the motor and close the valve when the specified time is complete. For lowering the lift, the controller will automatically open the valve, releasing air and will close after the specified time is complete. The optional LED output, when activated, will turn ON and automatically turn OFF after the set time is complete ensuring you don’t accidentally leave the light on.

WIRELESS & MANUAL OPERATION: The boat lift blower motor control box is fully operational from a wireless key fob. In the event a key fob is lost or needs replaced, users may easily sync a new fob and operate all functions of the lift directly form the smart controller. In a rare event of a power outage, the user can easily manually override the air-valve and release air lowering the boat lift.

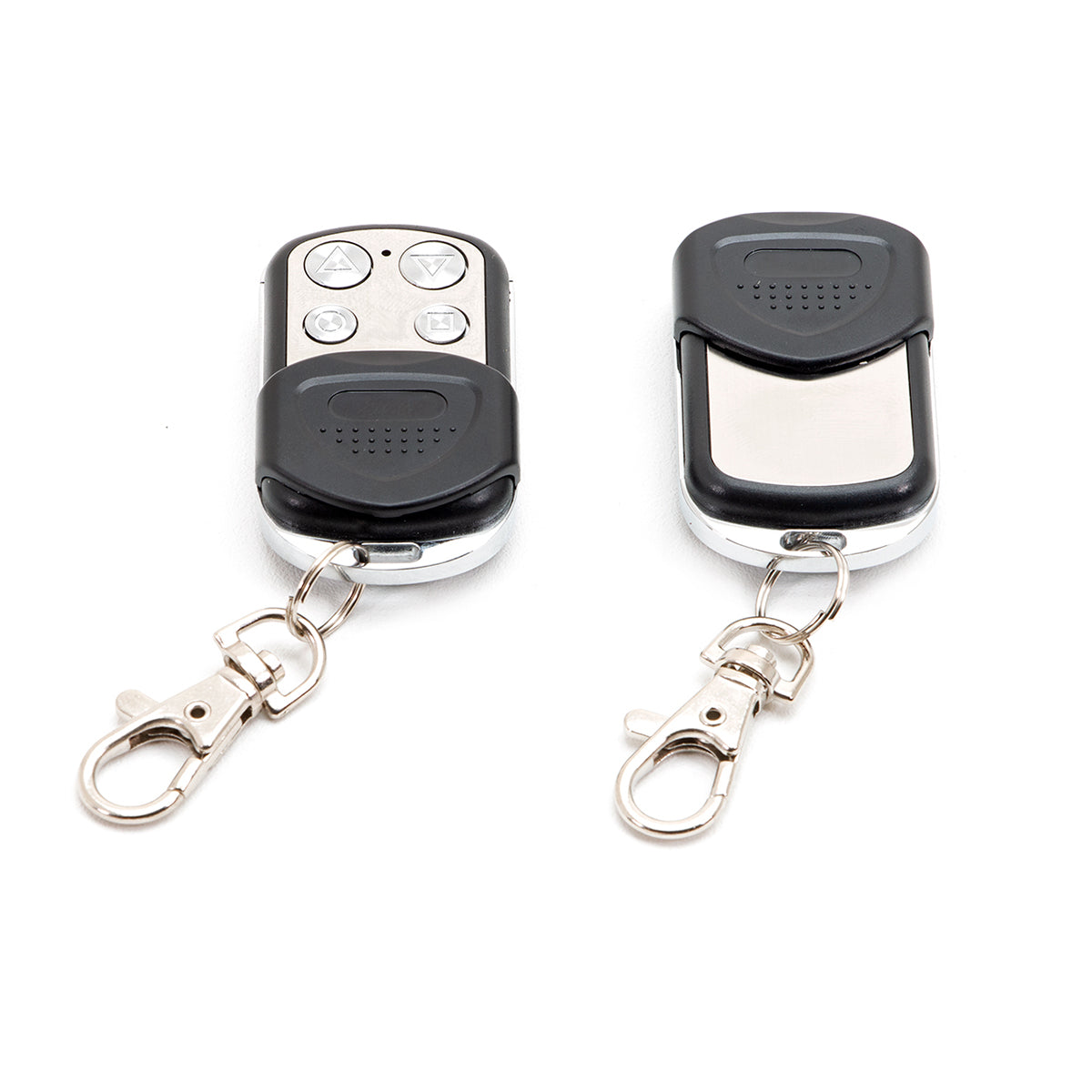

KEY FOB: The key fob provides a simple and convenient way to operate the boat lift and is made of a protective shell and slide cover to protect the accidental button presses. The wireless fob operates UP, DOWN, STOP/PAUSE & LIGHT functions up to 150-200ft range. The wireless fob with optional LED light makes it safe to illuminate the boat house when walking down to the dock or returning from an evening boat cruise.

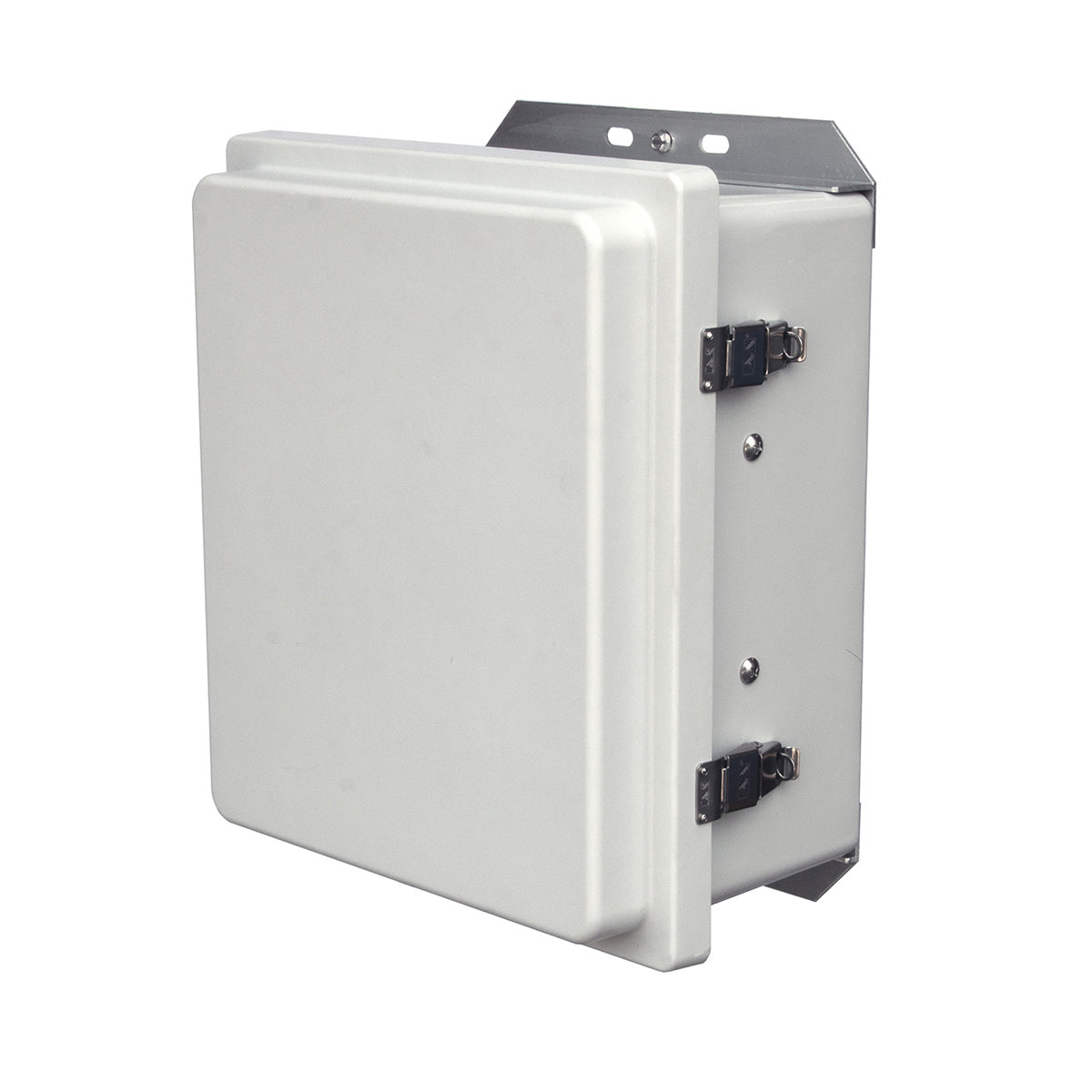

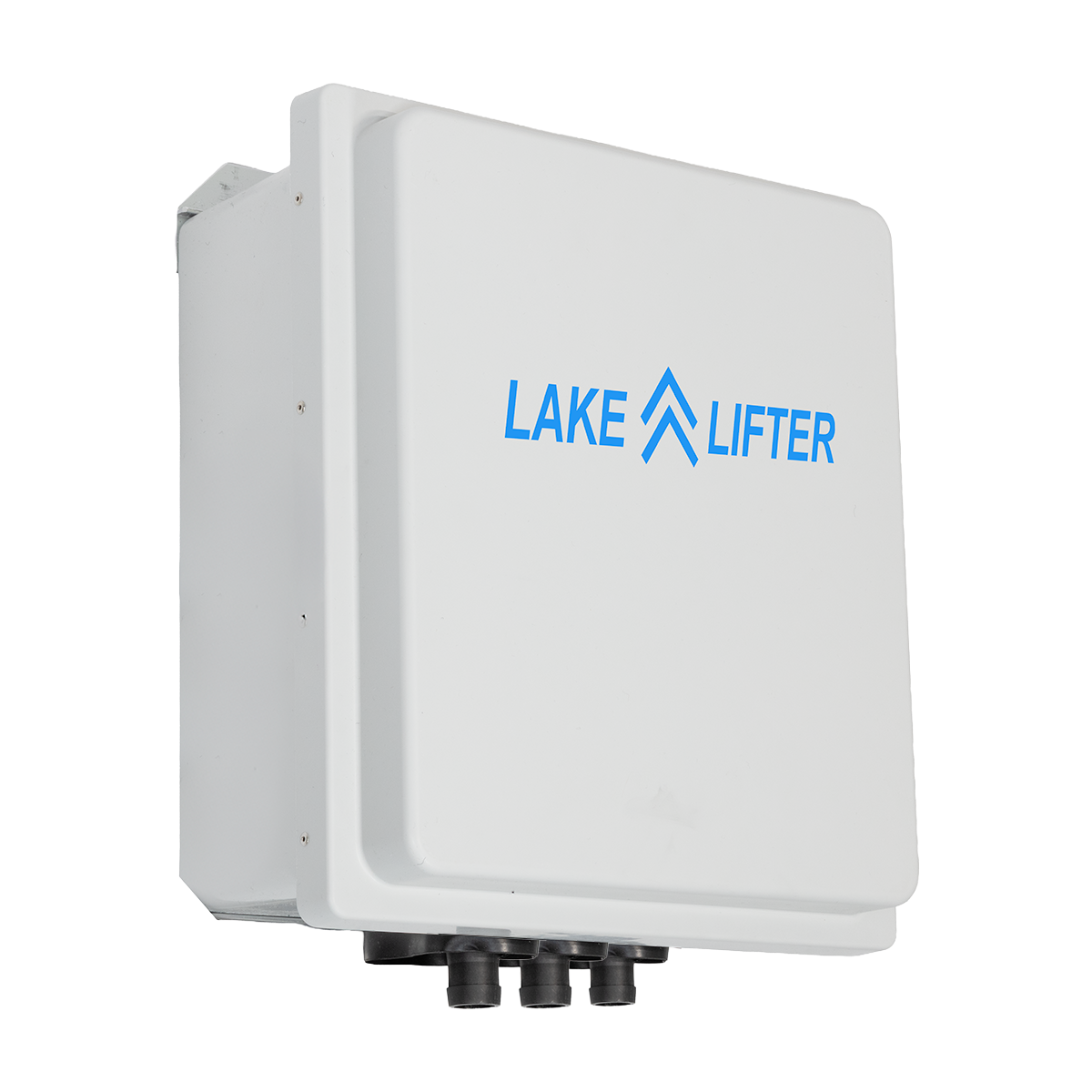

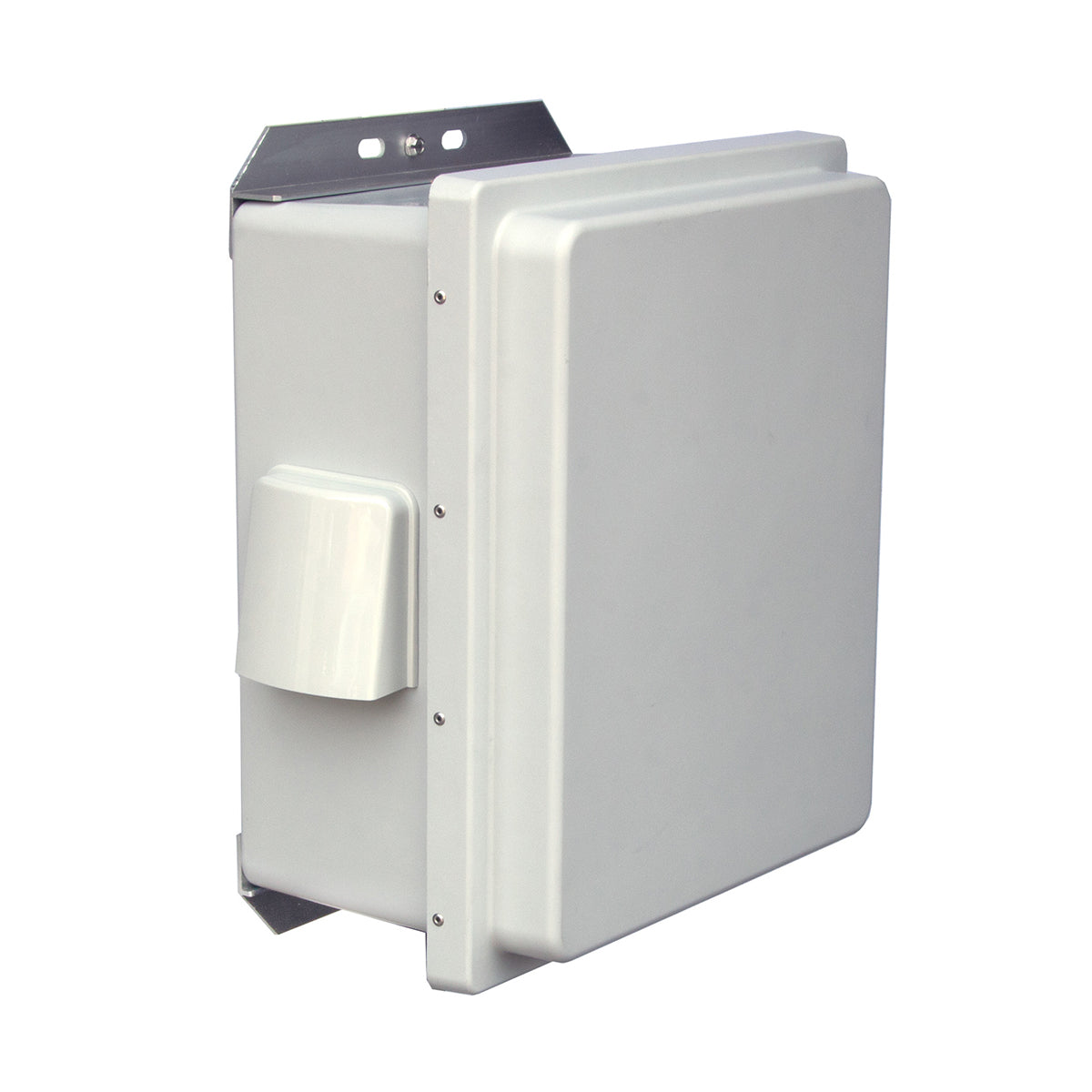

FIBERGLASS BOX: Lake Lifter’s durable Fiberglass Box houses everything inside a compact 14x12x6 inch control box, saving precious dock and walkway space.

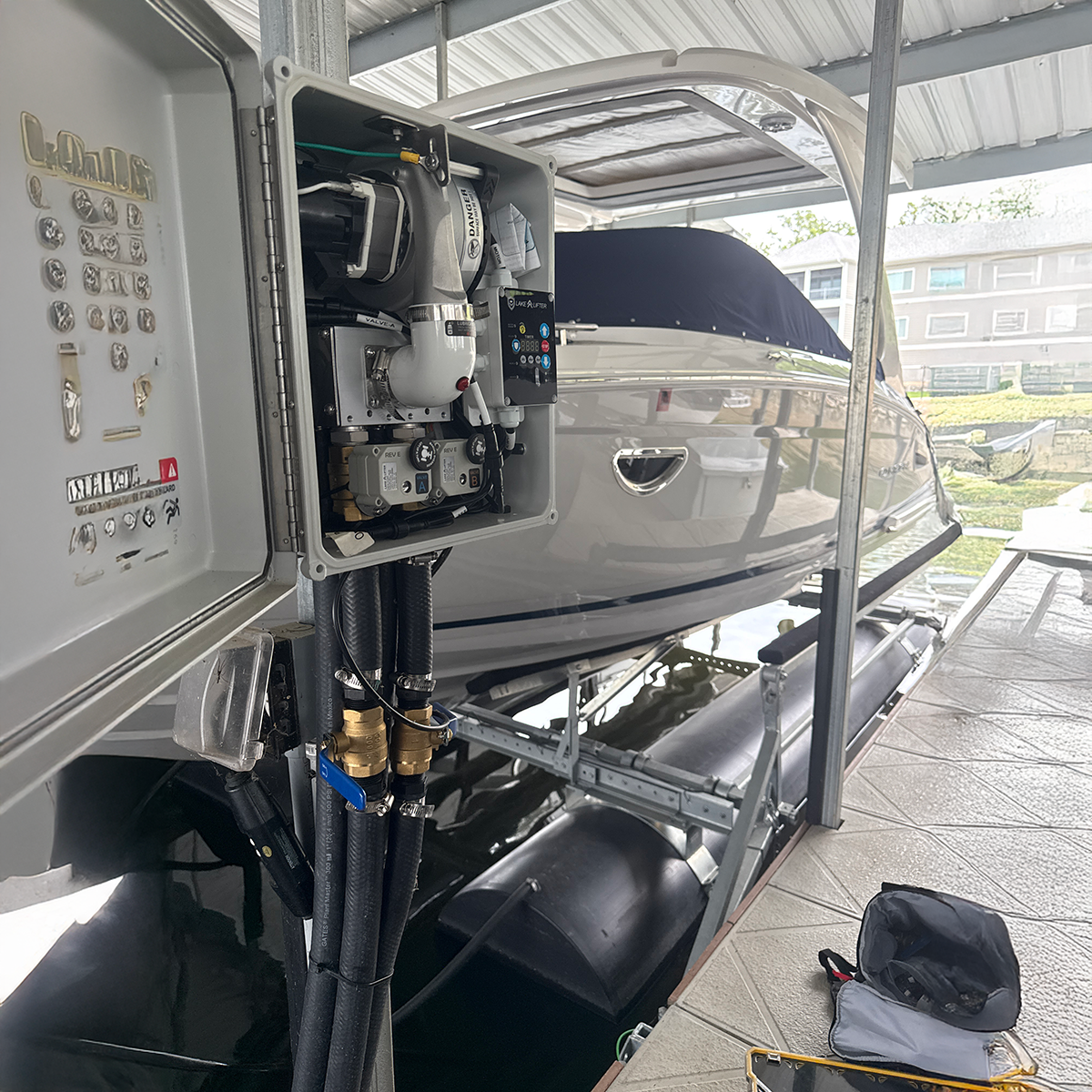

SIZE MATTERS:  Save Precious dock space with the industries most compact boat lift blower control box. Only 14x12x6 inches in size! Easily mounts to any vertical post keeping your walkway free and clear.
