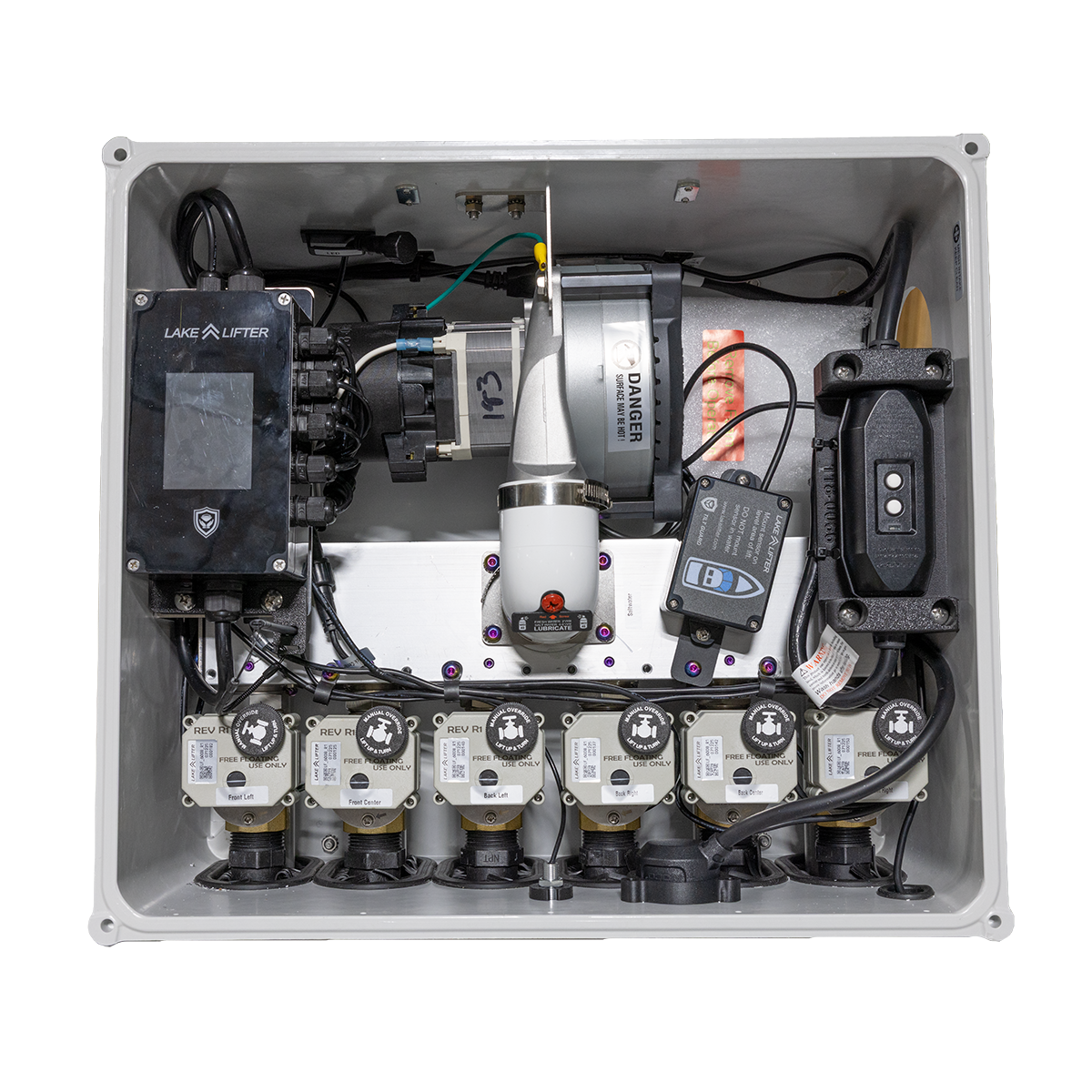

AC Bluetooth/Wi-Fi Boat Lift Blower Motor Control Box - Free Floating

A sophisticated AC control box engineered for free floating air displacement boat lifts. Available in 1-motor or 2-motor configurations with 4 or 6 valves, with hose barbs matched to your lift's 1" or 1.25" air hose. Bluetooth and wireless key fob control, optional Wi-Fi push notifications, automatic firmware updates, auto leveling, system exercising, and a marine-grade enclosure for professional-grade vessel maintenance in any waterfront environment.

Valve & Motor Configurations

The number of valves is determined by the number of air tanks on your free floating lift. Each air tank requires its own valve connection, so choose 4 valves for a lift with 4 air hoses or 6 valves for a lift with 6 air hoses. The number of motors determines how quickly your lift raises: a single motor delivers standard lifting speed, while a second motor moves more air at the same time for a faster lift cycle.

Matched Air Hose Barbs

Air displacement floating lifts use either 1" or 1.25" hose, depending on the lift manufacturer and system design. Each control box is fitted with hose barbs sized specifically to match the internal diameter (ID) of your hose, so select the air hose size that matches your lift for a secure, leak-free connection.

Bluetooth, Wi-Fi & Key Fob Control

Integrated Bluetooth and wireless key fob capabilities allow for precise remote operation from a mobile device or handheld controller. Optional Wi-Fi connectivity enables push notifications for real-time status updates and system warnings delivered directly to a smartphone. The unit also supports automatic over-the-air firmware updates to deliver the latest features and software optimizations without manual intervention.

Automated Safety Suite

The automated safety suite includes proactive auto leveling to keep the lift balanced across all tanks and system exercising to maintain mechanical components in optimal working order even during extended periods of absence. The marine-grade enclosure is engineered for durability in any waterfront environment, delivering the reliability and advanced automation necessary for professional-grade vessel maintenance.

Optional Internal GFCI

An internal GFCI is recommended for lifts located in salt or brackish water, installations without a roof or overhead cover, and environments exposed to frequent rain, spray, or high humidity. Salt and brackish environments are significantly more corrosive and conductive than fresh water, and uncovered lifts are exposed directly to weather. An internal GFCI adds protection within the unit itself, helping safeguard both the user and the equipment in these harsher conditions.
